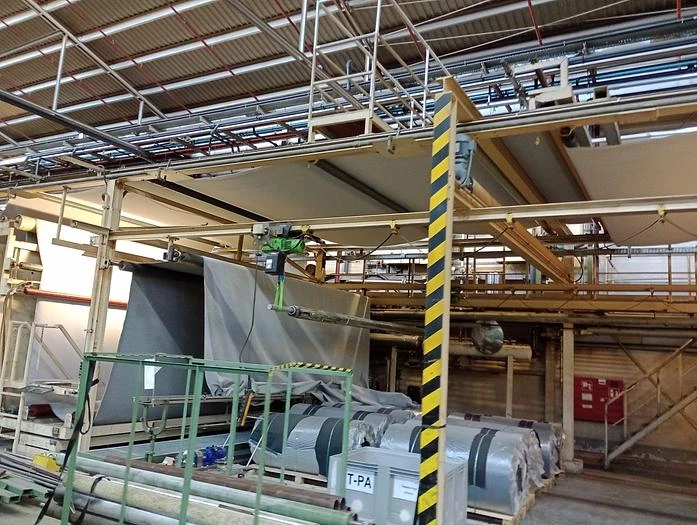

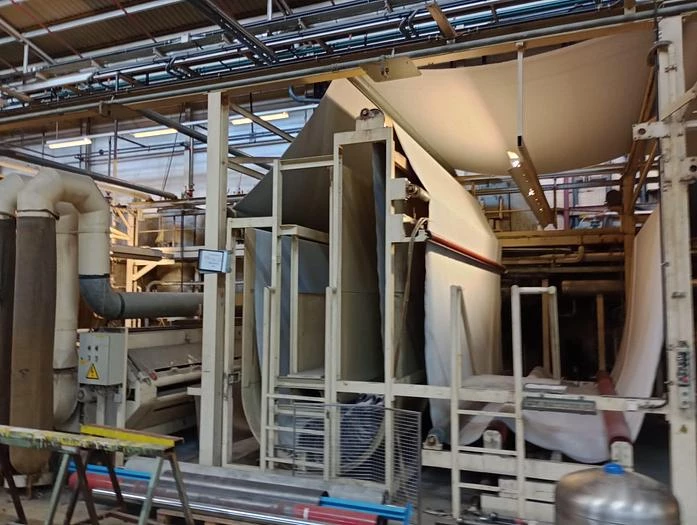

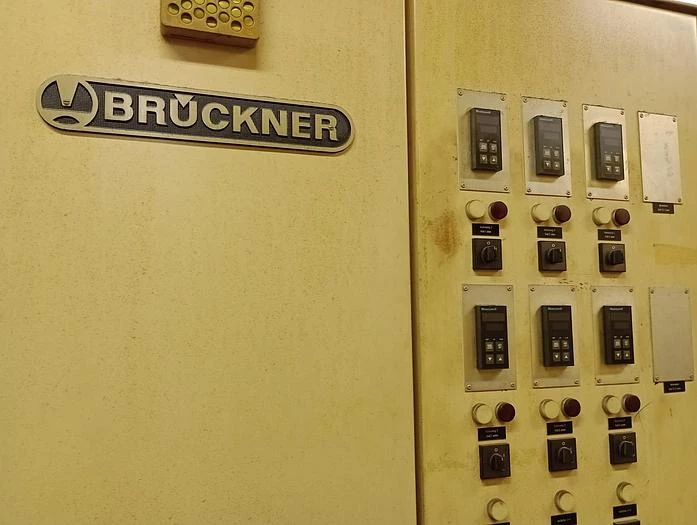

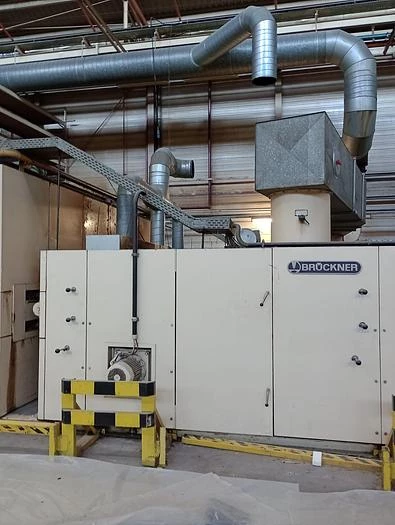

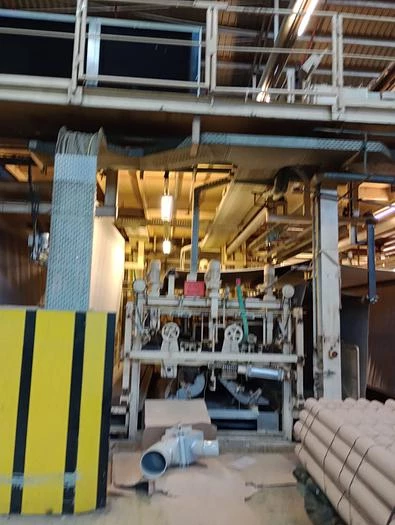

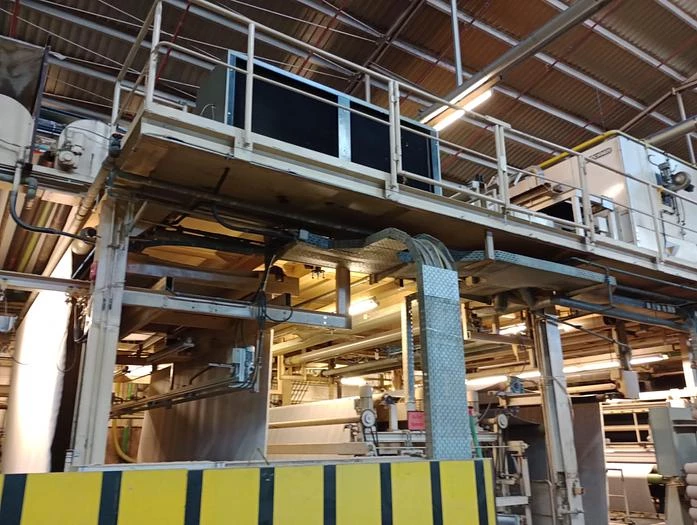

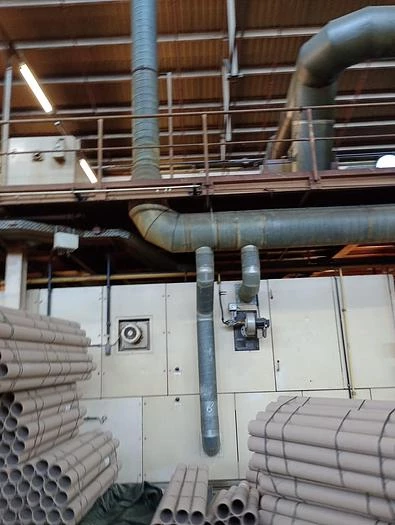

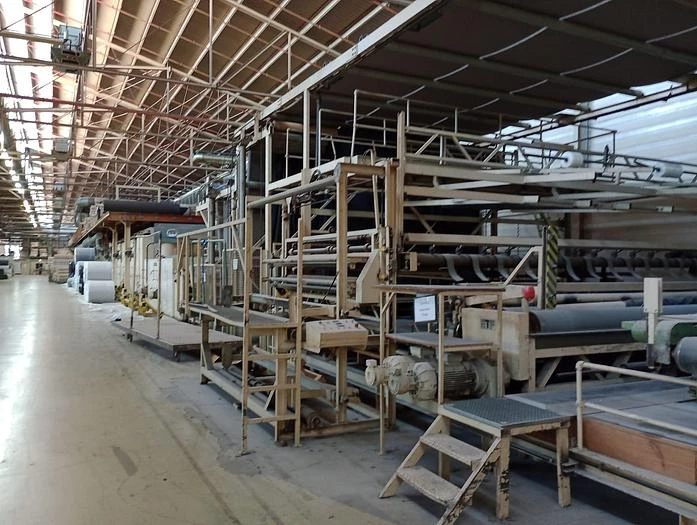

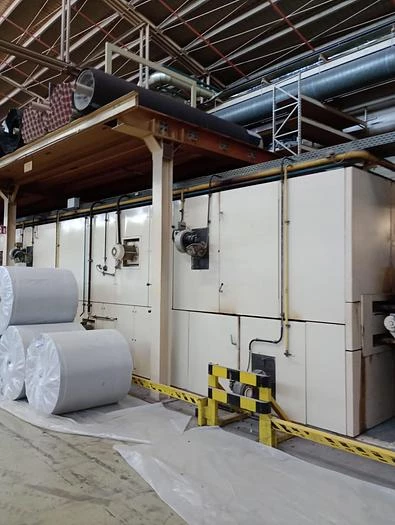

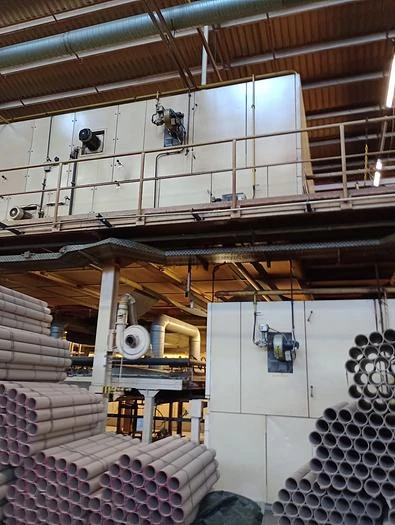

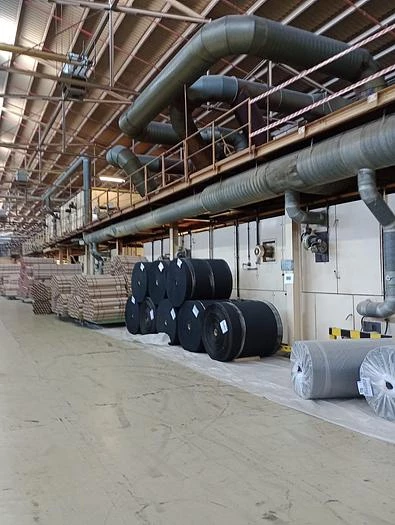

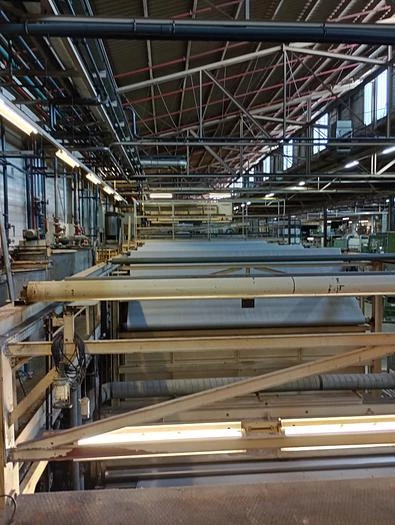

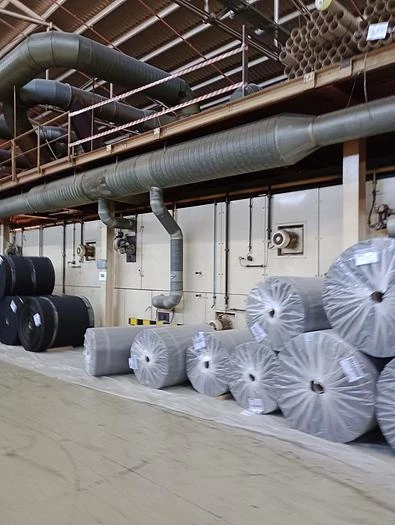

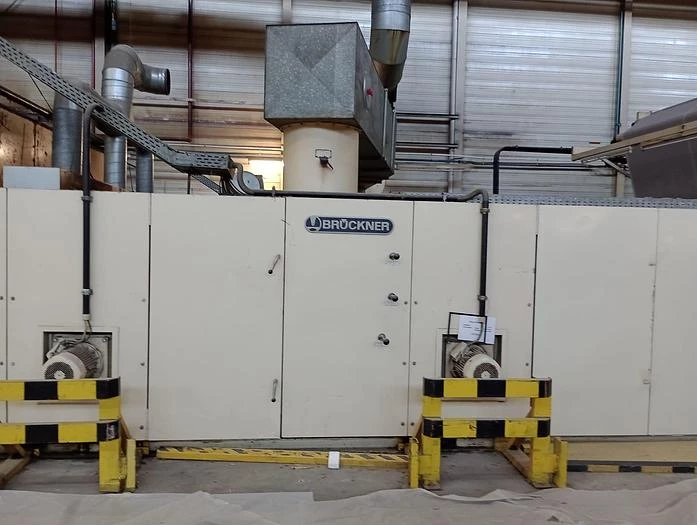

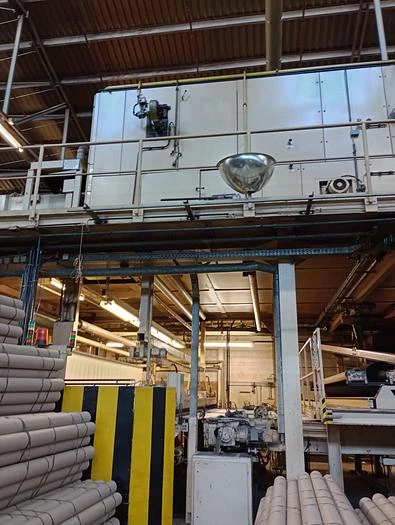

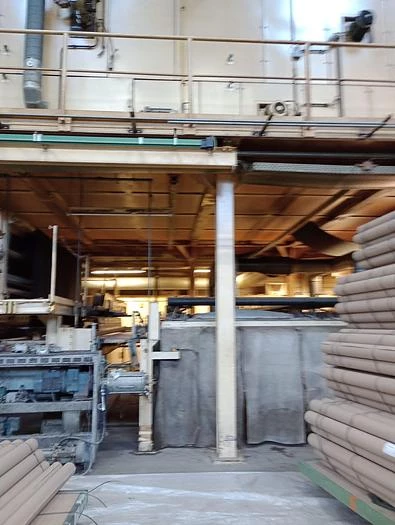

Latex coating system from Brückner

Latex coating system from Brückner
Carpet coating and laminating system
Technical data:
Max. working width: 5200 mm
The closing machine can utilise all reserves.
Can be used up to a span width of 5250 mm.
Min. working width: 3400 mm for Prage 3500 mm
Drive speed: 2 - 15 m/min.
Drive: DC motors
Operating side: right
Colour of the system: RAL 1.015 structure
Goods transport system: vertical needle chain
Length of one field: 3 m
Fans per field: 2
Fan power: 7.5 kW
Heating systems - per field: 2, separately above and below the bridge
Adjustable air temperature: 50 - 250 °C
Achievable temperature spread:
160 ° above, 100 ° below
or 200 ° above, 125 ° below

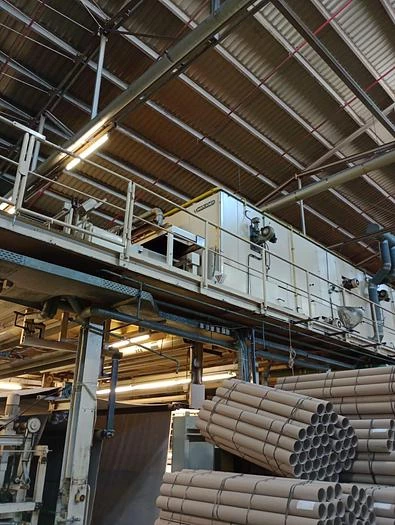

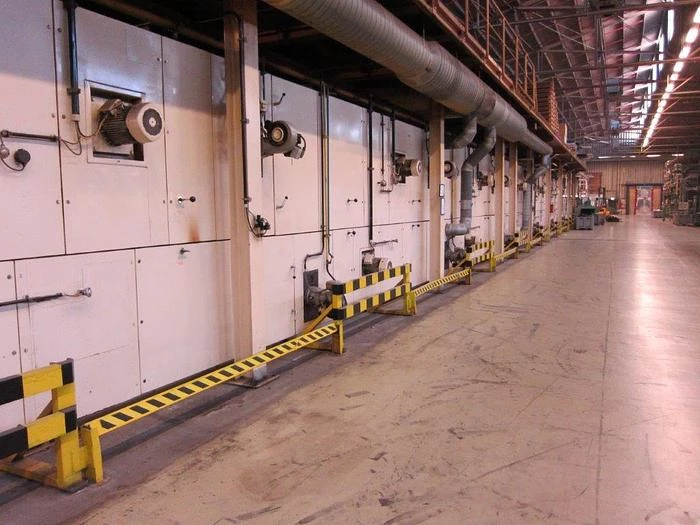

Size of the dryer
Pre-drying: 5 fields
Gelation channel: 3 fields
Vulcanisation channel: 12 fields
Production speed: 9 m/min. with the following data:
Primer: 725 g/m² dry, 76% dry matter
Foam: 650 g/m² dry, 72% dry matter
Carpet pile: 100% PA
Weight of pile and backing: 600 g/m²
Air temperature:
Back 170–180 °C
Fields 14 + 15 140 °C
Pile side 135 °C
Cooling: 50 °C on the foam surface at 20 °C room temperature
Heating time to _180/135 °C: • max. 20 min.
Gas consumption during drying
Dry goods: approx. 2.2.10 6 kcal/h
incl. I-radiator
at 5 m working width
approx. 200 kg/h gas
at 5 m working width
approx. 200 kg/h gas
Electrical power of the channels
Recirculating air: Pre-drying approx. 62 kW
Gelling and vulcanisation channel
approx. 185 kW
Cooling fields approx. 40 kW
Heated: Direct gas
Gas type: Propane or butane with 500 mm WS pressure in the distribution pipe
Installed heat output: 3 Gcal/h
corresponds to approx. 300 kg gas/h
