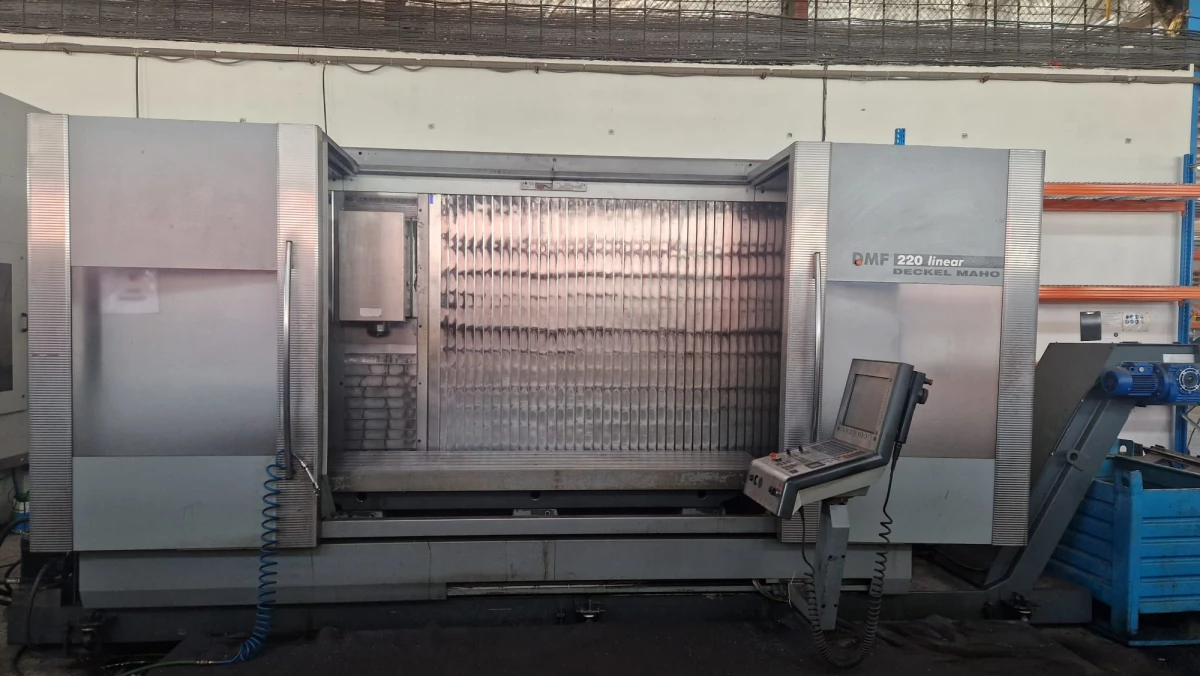

Vertical CNC Machining Center
- Machine No: MCH-000301
- Manufacturer: DECKEL
- Model: MAHO DMF 220 linear
- Year: 2003
- Condition:
Product Description

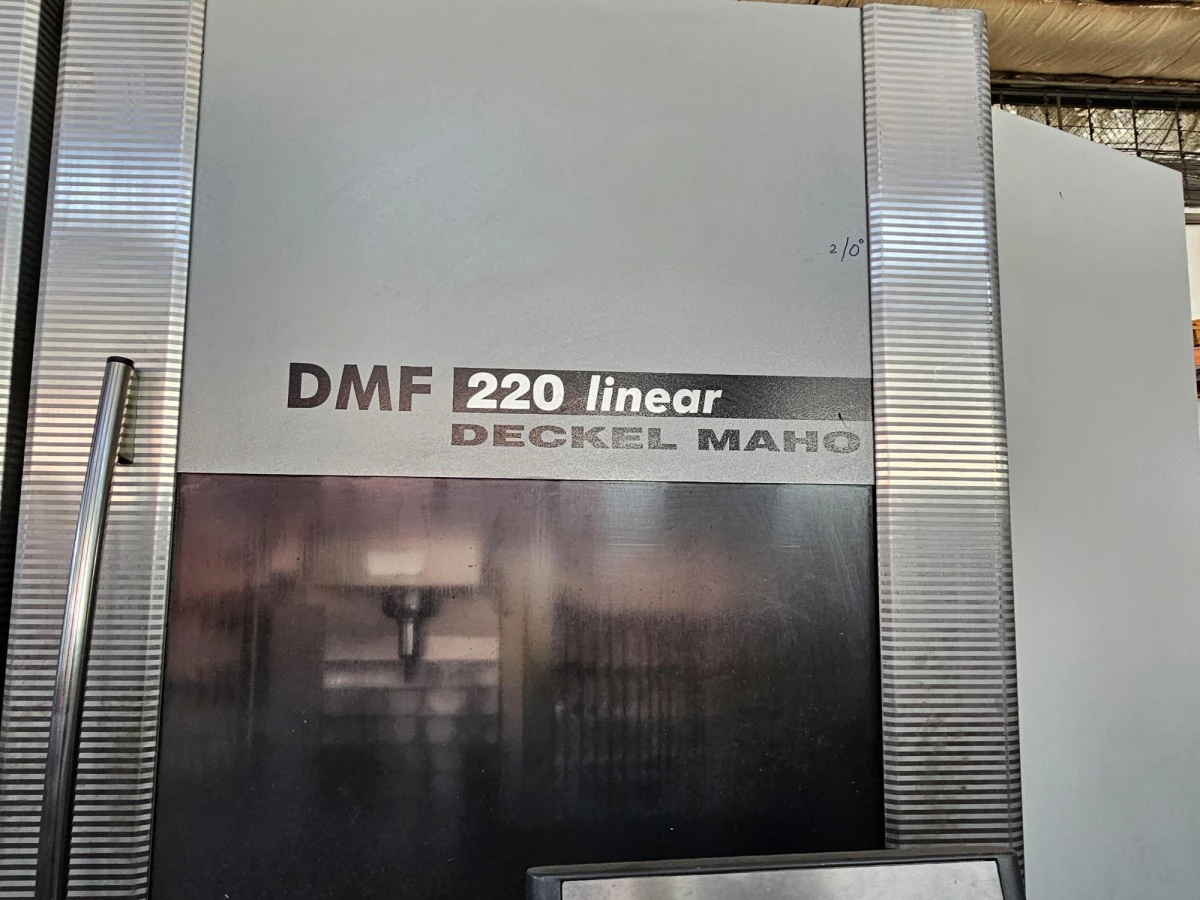

DECKEL MAHO DMF 220 linear
Machine Type: Vertical CNC Machining Center Manufacturer: DECKEL MAHO

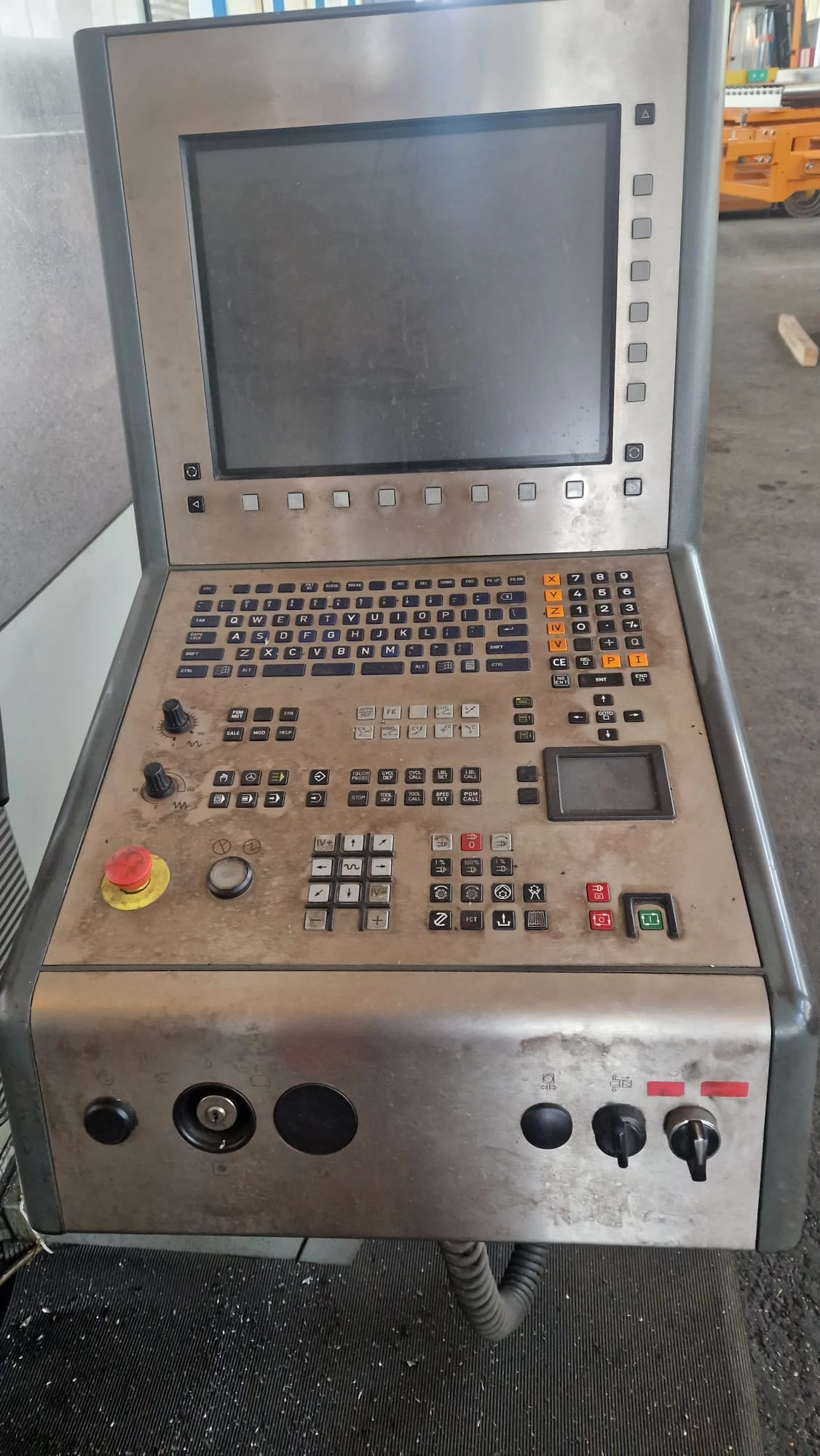

Model: DMF 220 linear Control System: Siemens 840D ShopMill, yoc 2003
Technical Specifications
- X-axis travel: 2,200 mm
- Y-axis travel: 560mm
- Z-axis travel: 720 mm

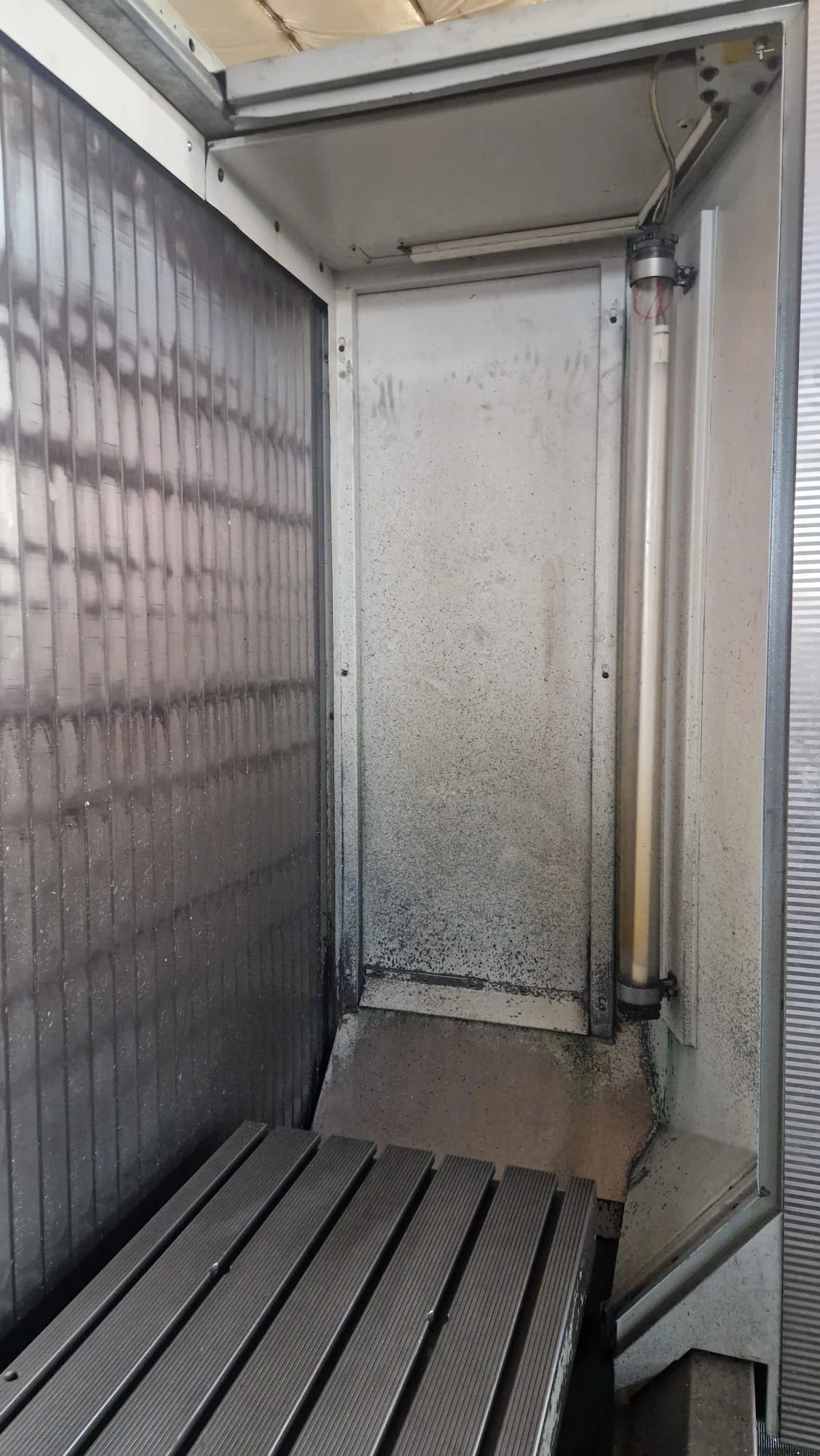

- Table size: 2,600 × 600 mm
- Table load capacity: 2,200 kg
- Tool holder: SK40 / HSK-A63 DIN 69893
- Spindle speed: 20
– 18,000 rpm
- Feed rate: up to 20,000 mm/min
- Rapid traverse X-axis: 100 m/min
- Rapid traverse Y/Z-axis: 50 m/min

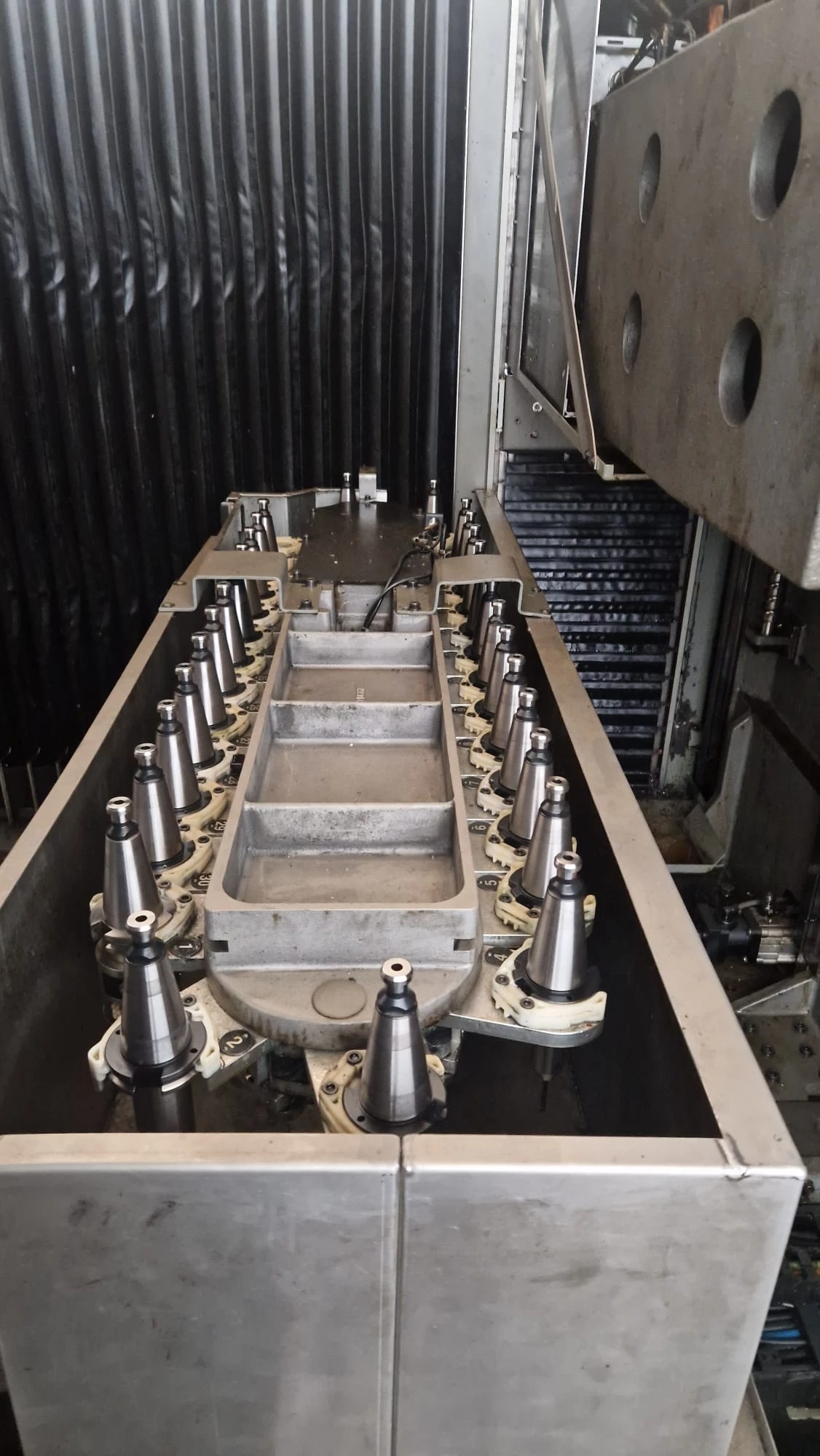

- Tool magazine: 30 positions
- Spindle hours: approx. 7,086 h
- Idle running hours: approx. 24,652 h

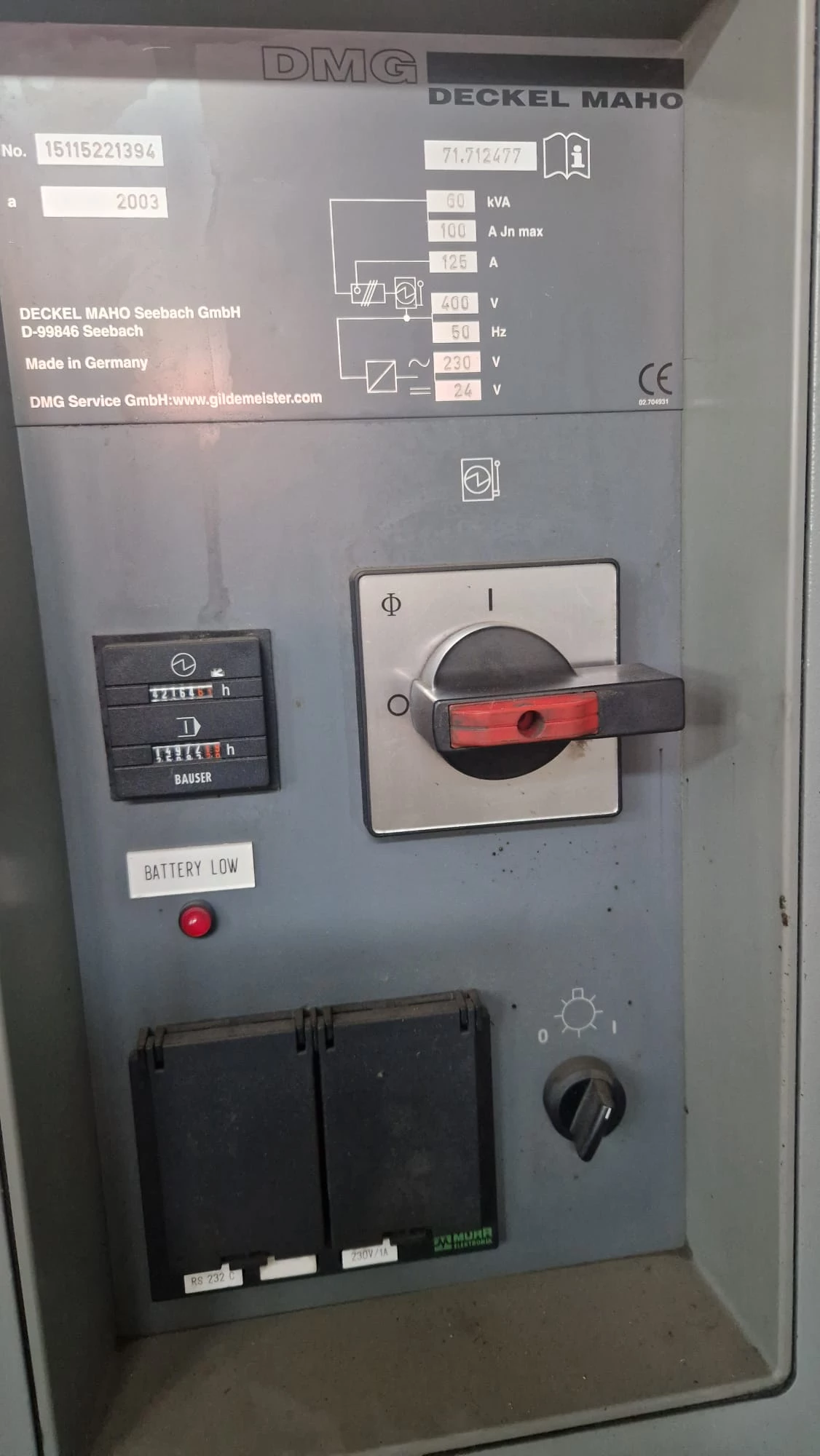

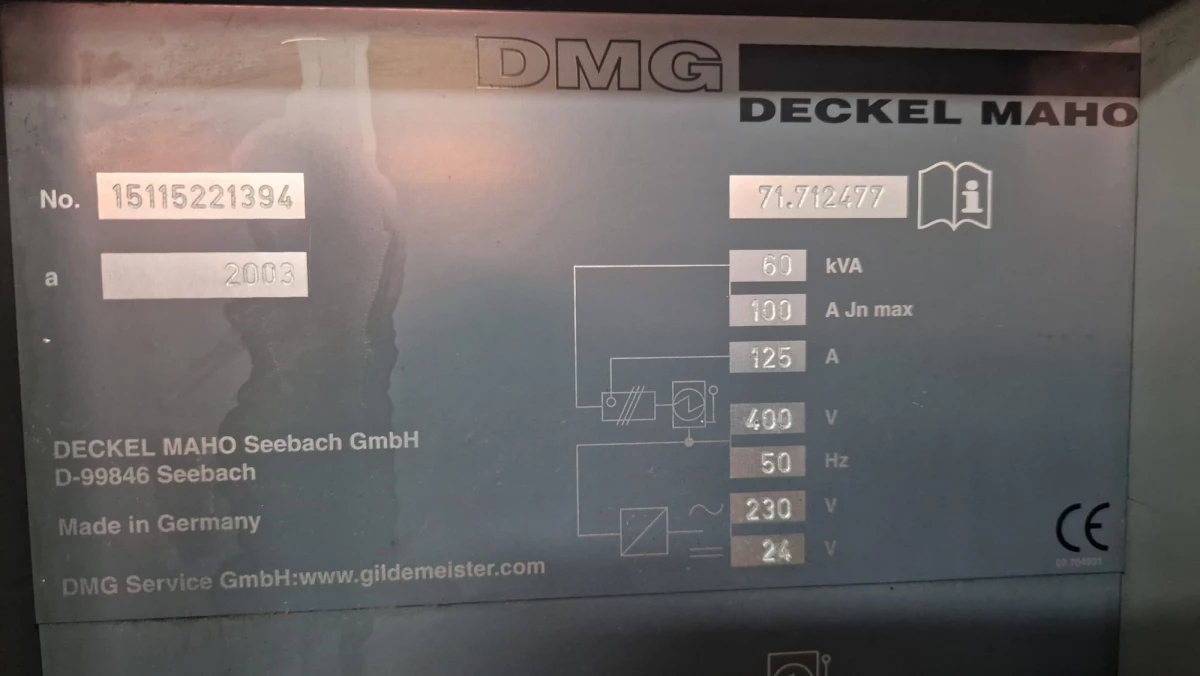

- Total power requirement: approx. 70 kVA
- Machine weight: approx. 12.5 tons
Equipment & Features
- Mineral cast machine bed
- Mineral cast machine bed
- Chip conveyor with coolant tank
- Cooling lubricant unit with compact filter system
- AC servo drives on X, Y and Z axes
- Hydraulic/mechanical tool clamping Linear measuring system on all axes
