AIRBAG FABRIC FINISHING LINE

 AIRBAG FABRIC FINISHING LINE

 HANAYAMA KOGYO – Model OS12-HTFD-ST8-2800

 Complete Textile Washing, Drying and Stenter Finishing Line

 Manufacturer:  HANAYAMA KOGYO CO., LTD., Japan
 Year:  2016 (according to available equipment documentation)
 Model:  OS12-HTFD-ST8-2800
 Roller Width:  2,800 mm
 Nominal Line Speed:  5–50 m/min
 Typical Operating Speed:  20–30 m/min
 Electrical Supply:  400 V / 60 Hz / 3-phase
 Availability and Price:  On request

 Machine Description

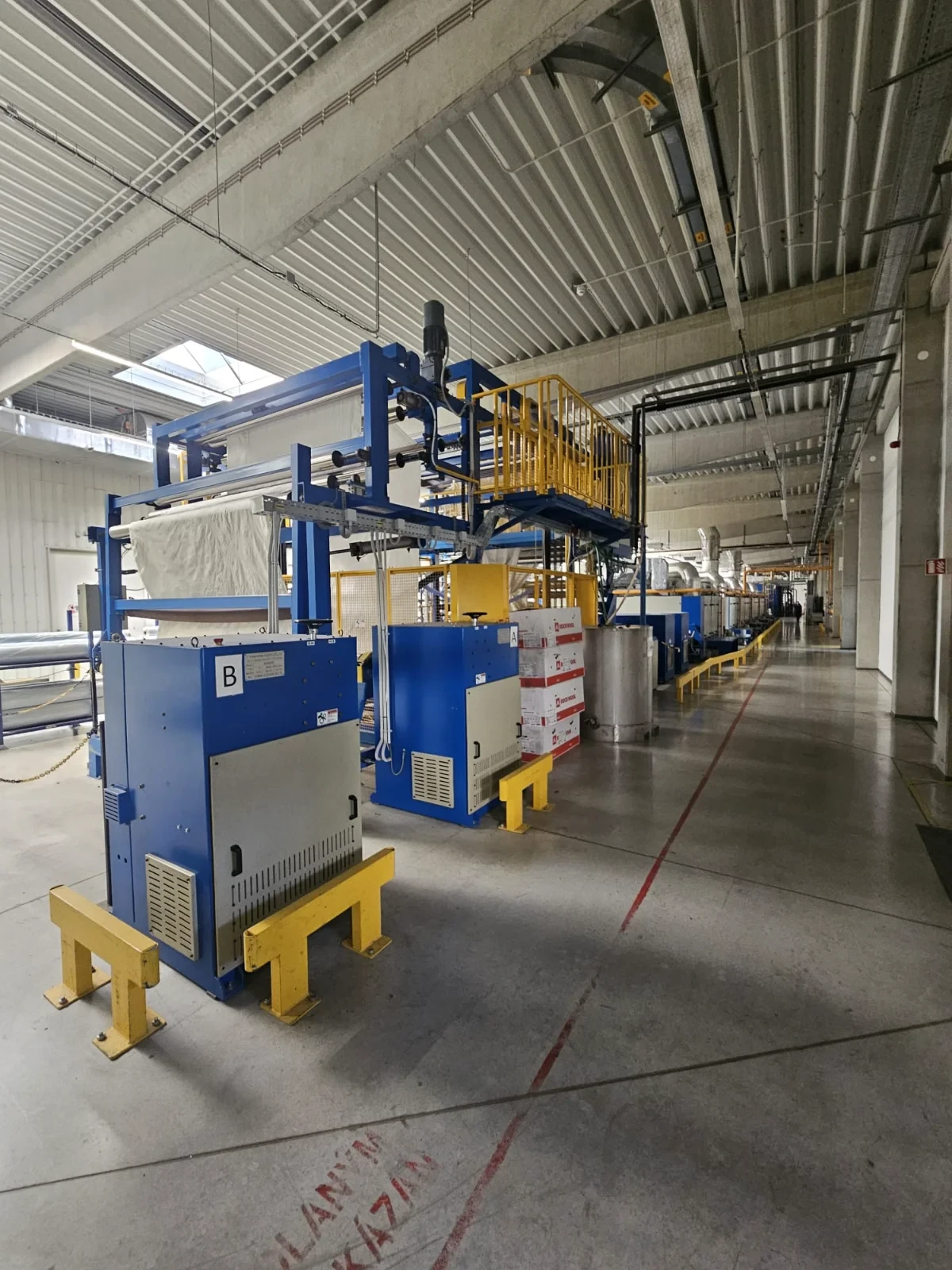

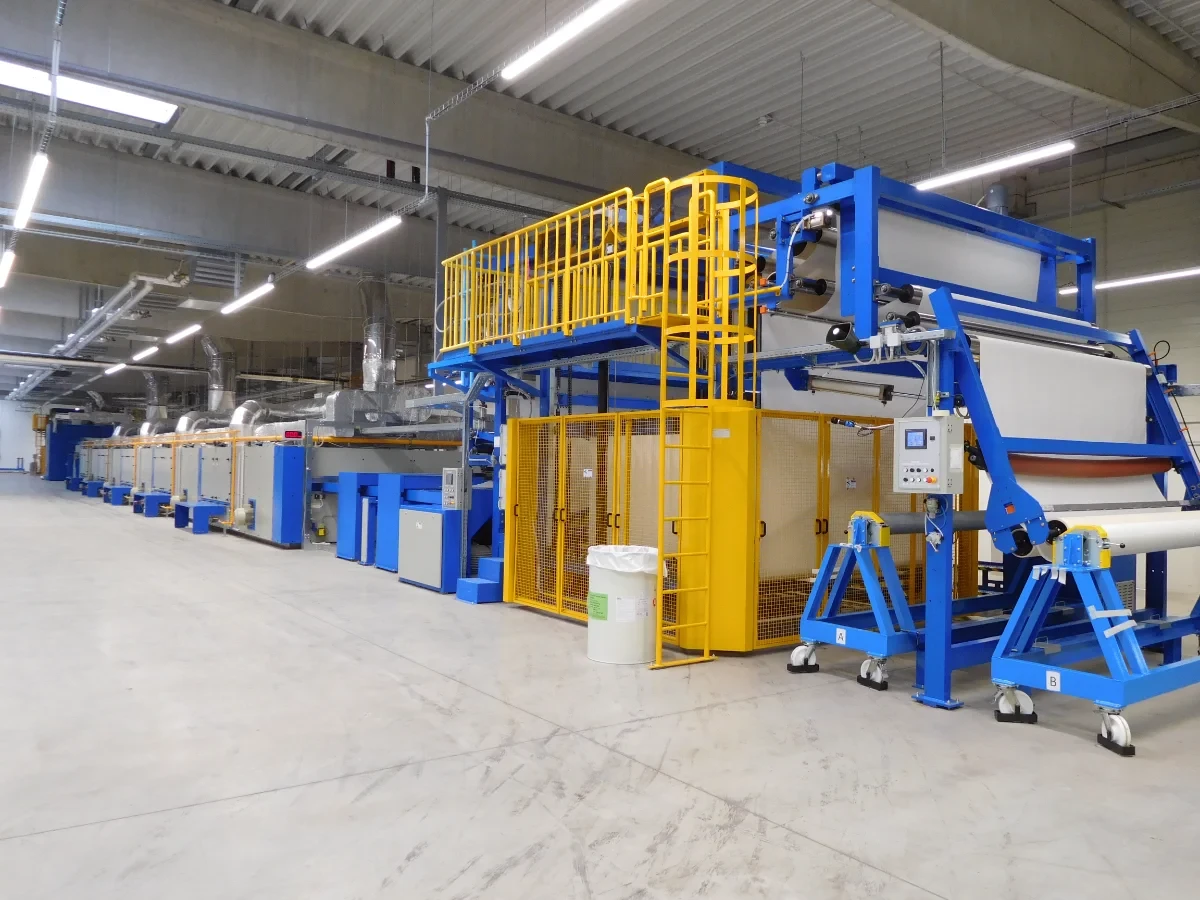

Industrial textile finishing line designed for continuous washing, drying, heat treatment, width control and finishing of woven technical fabrics, including fabrics used in automotive airbag applications.

The line comprises fabric unwinding, fabric accumulators, washing sections, a multi-pass hot flue dryer, a stenter finishing machine, cooling equipment, fabric guiding and rewinding systems.

 1. Fabric Unwinding and Infeed

- EHWHA GLOTECH unwinding equipment

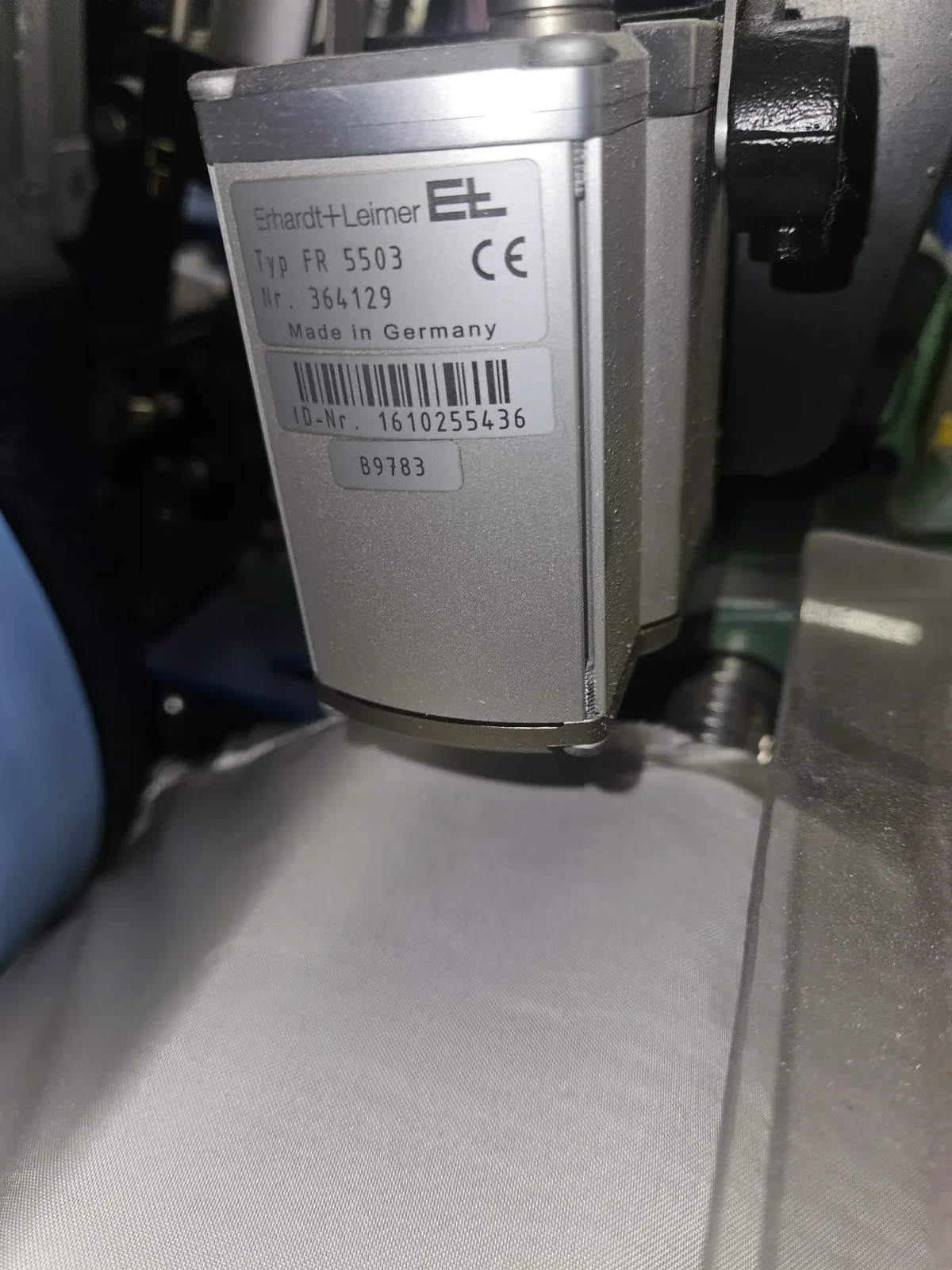

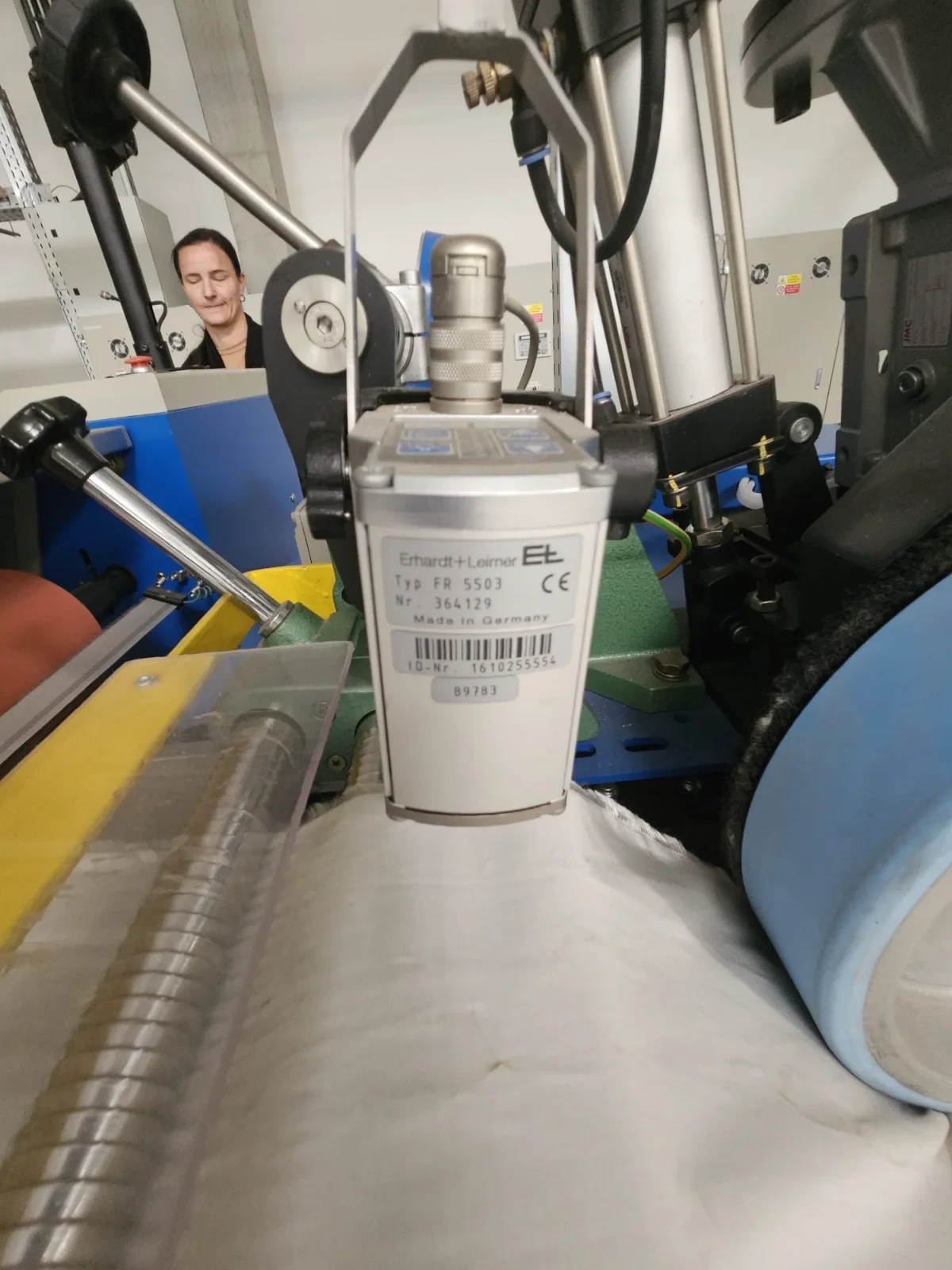

- Fabric guiding and tension control

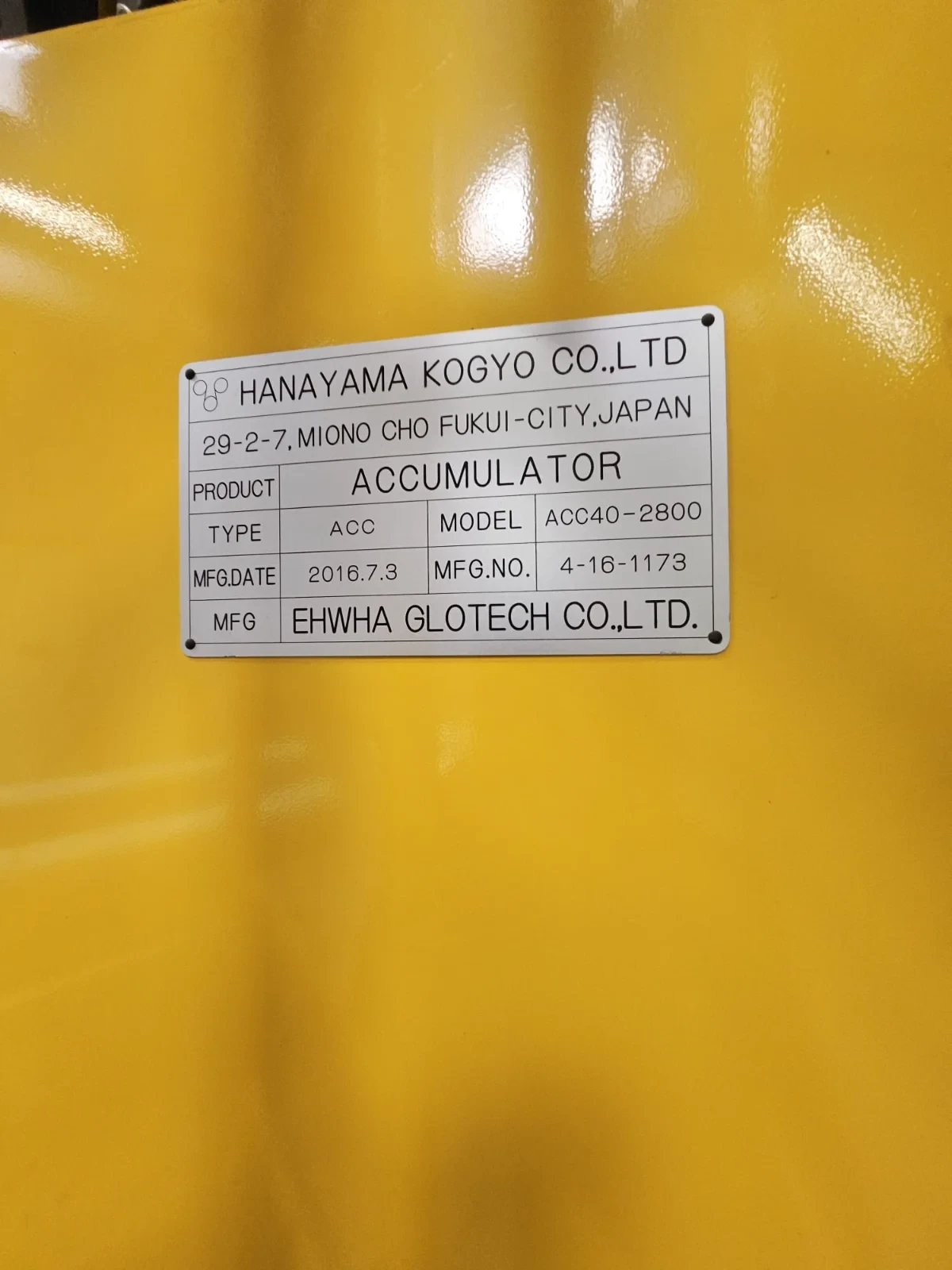

- Infeed fabric accumulator
- Stainless steel guide rollers
- Pneumatic fabric guiding components

 2. Washing Section

- Continuous fabric washing system
- Multiple washing compartments
- Stainless steel guide rollers
- Fabric feeding and extraction equipment
- Pneumatic roller pressure systems
- Variable-speed drive equipment

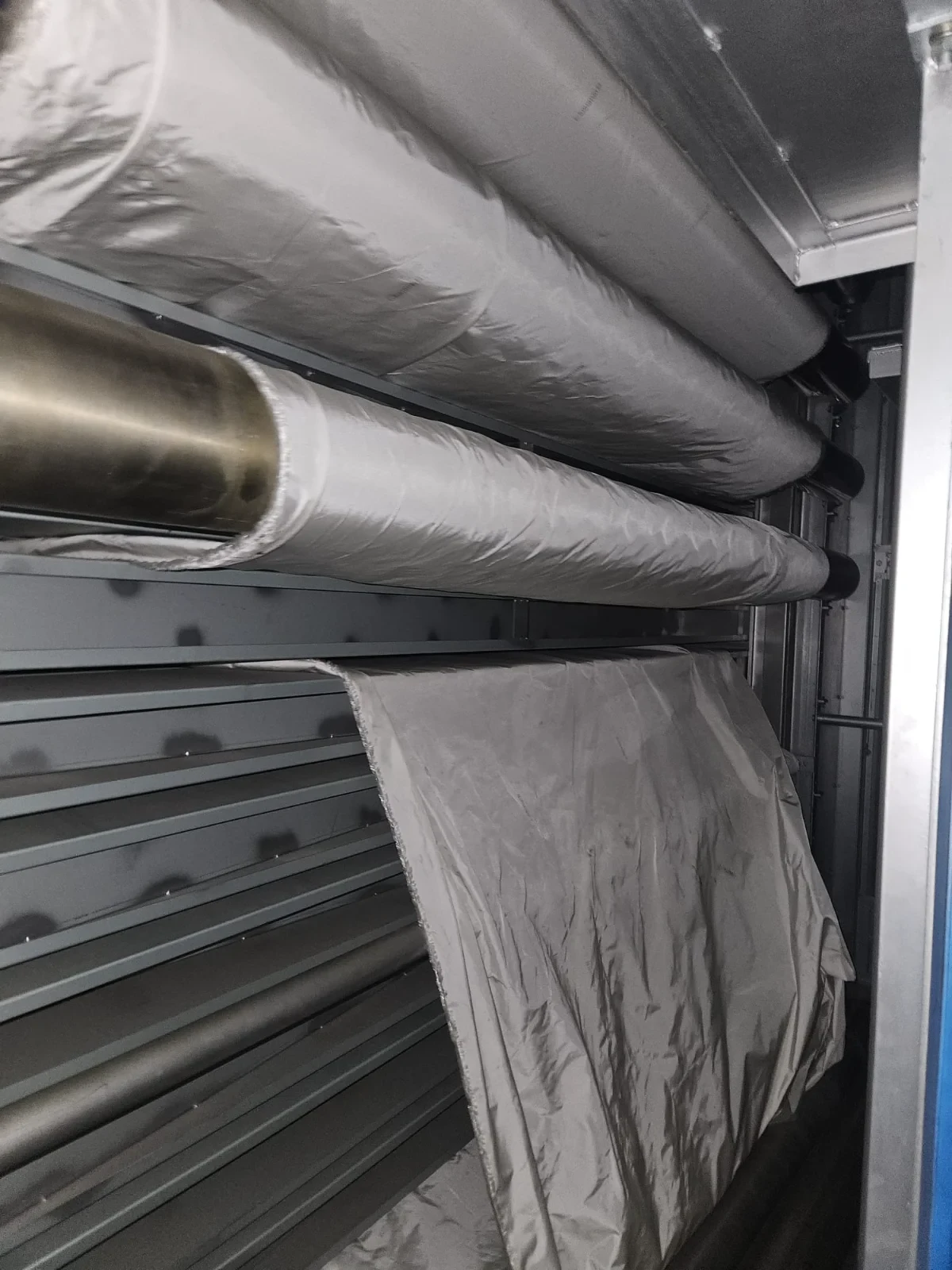

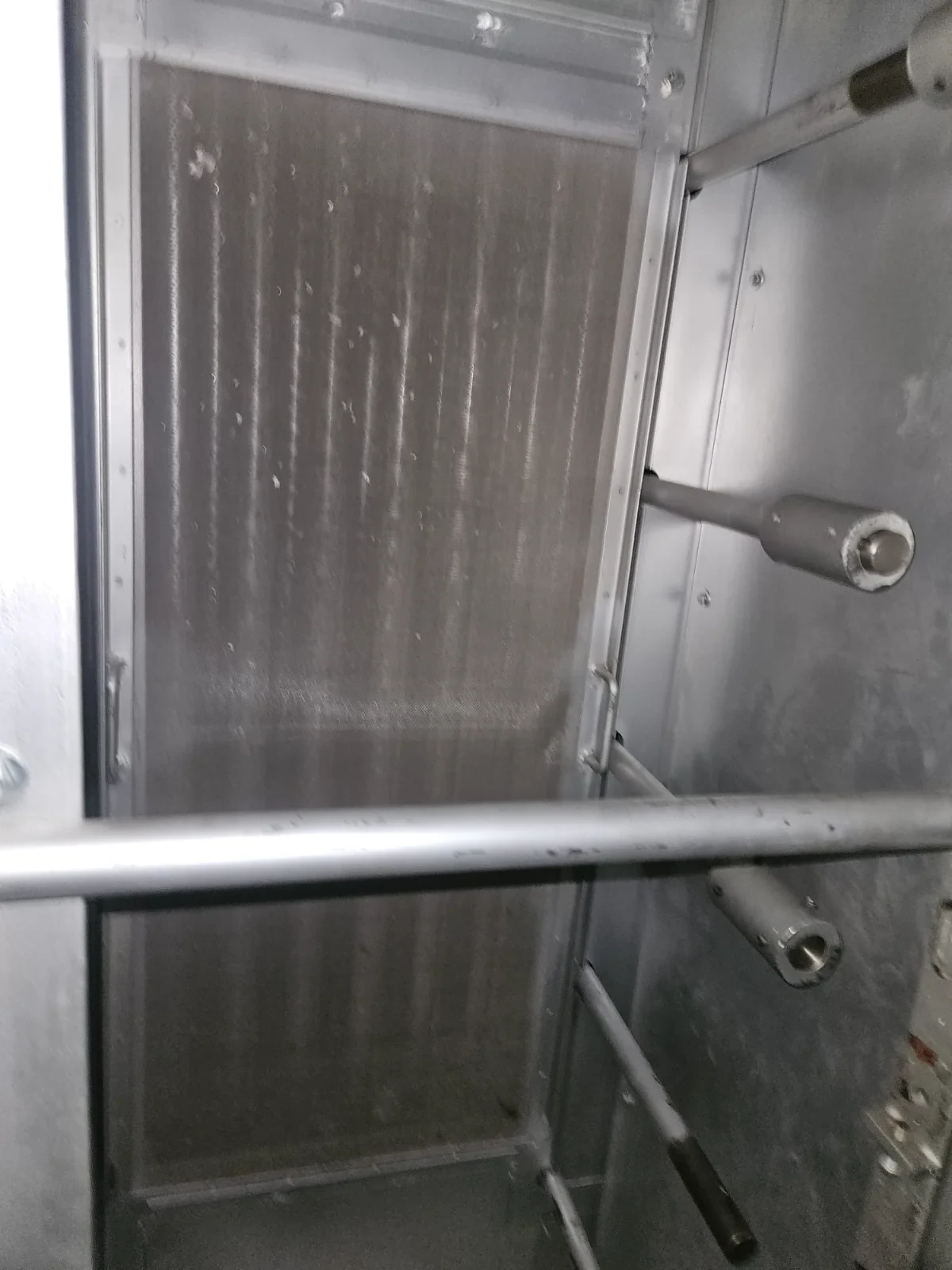

 3. Hot Flue Dryer

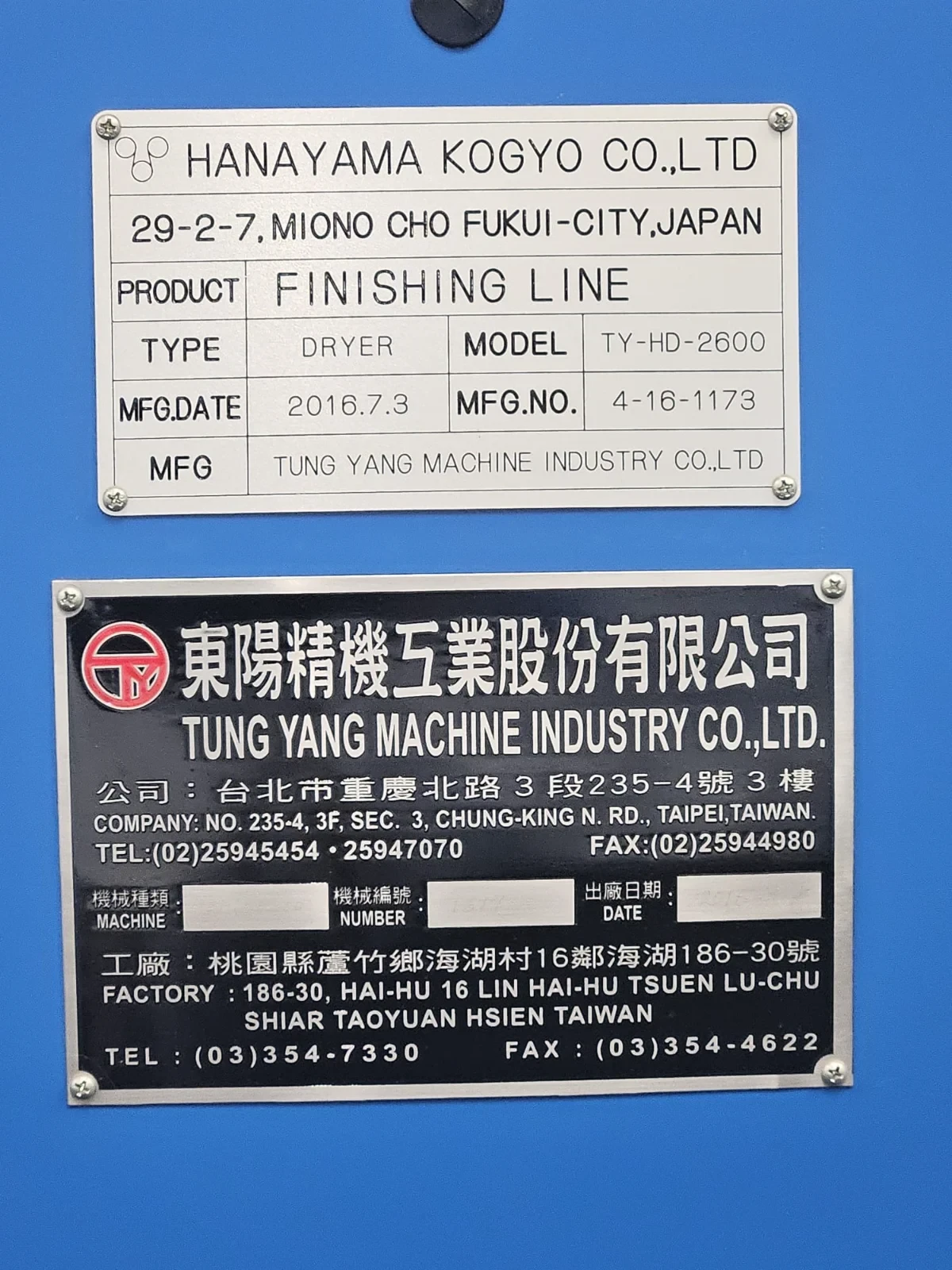

 Manufacturer:  TUNG YANG
 Model:  TY-HD-2600

- Roller width: 2,800 mm
- Working width: 2,600 mm

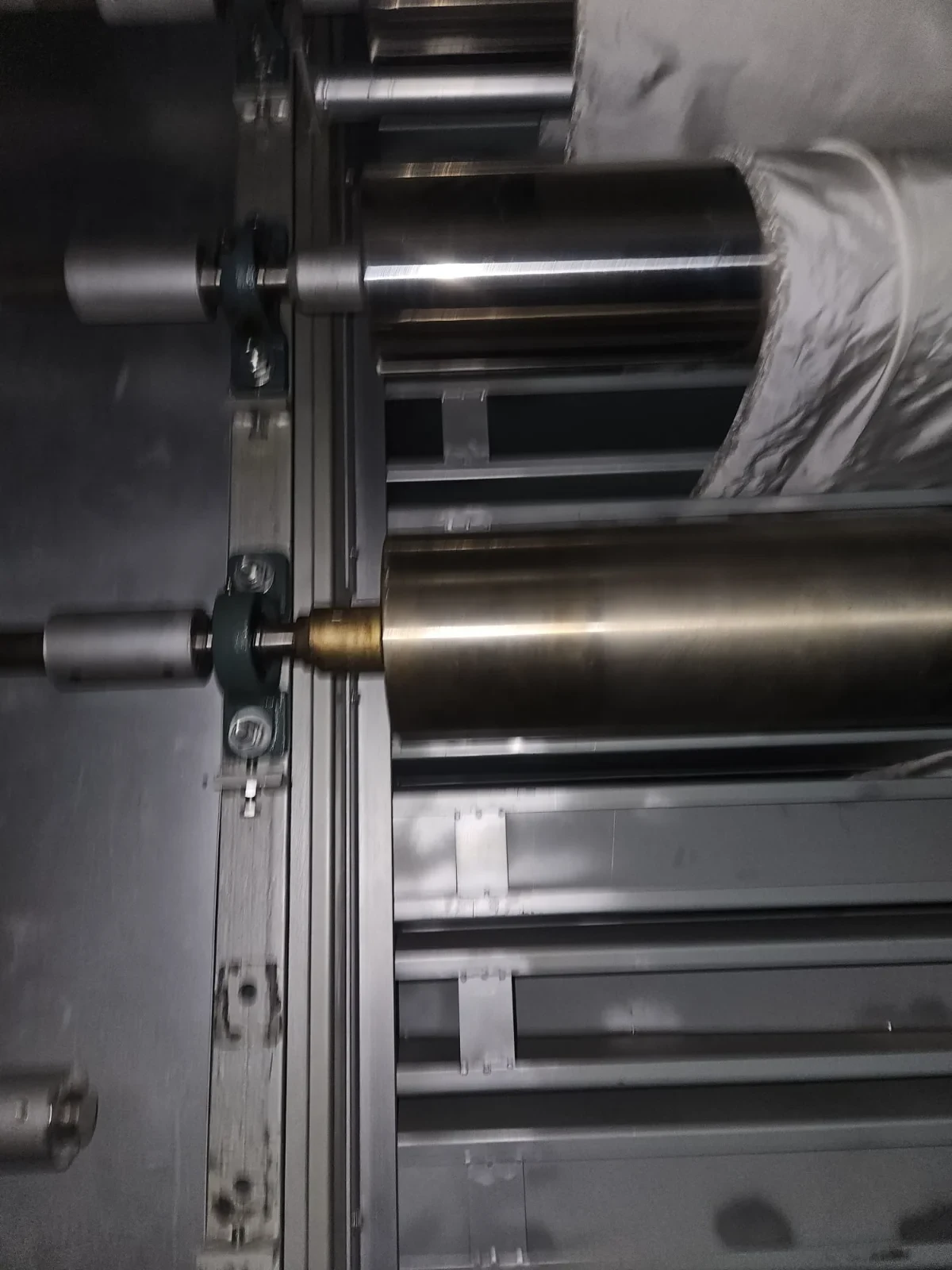

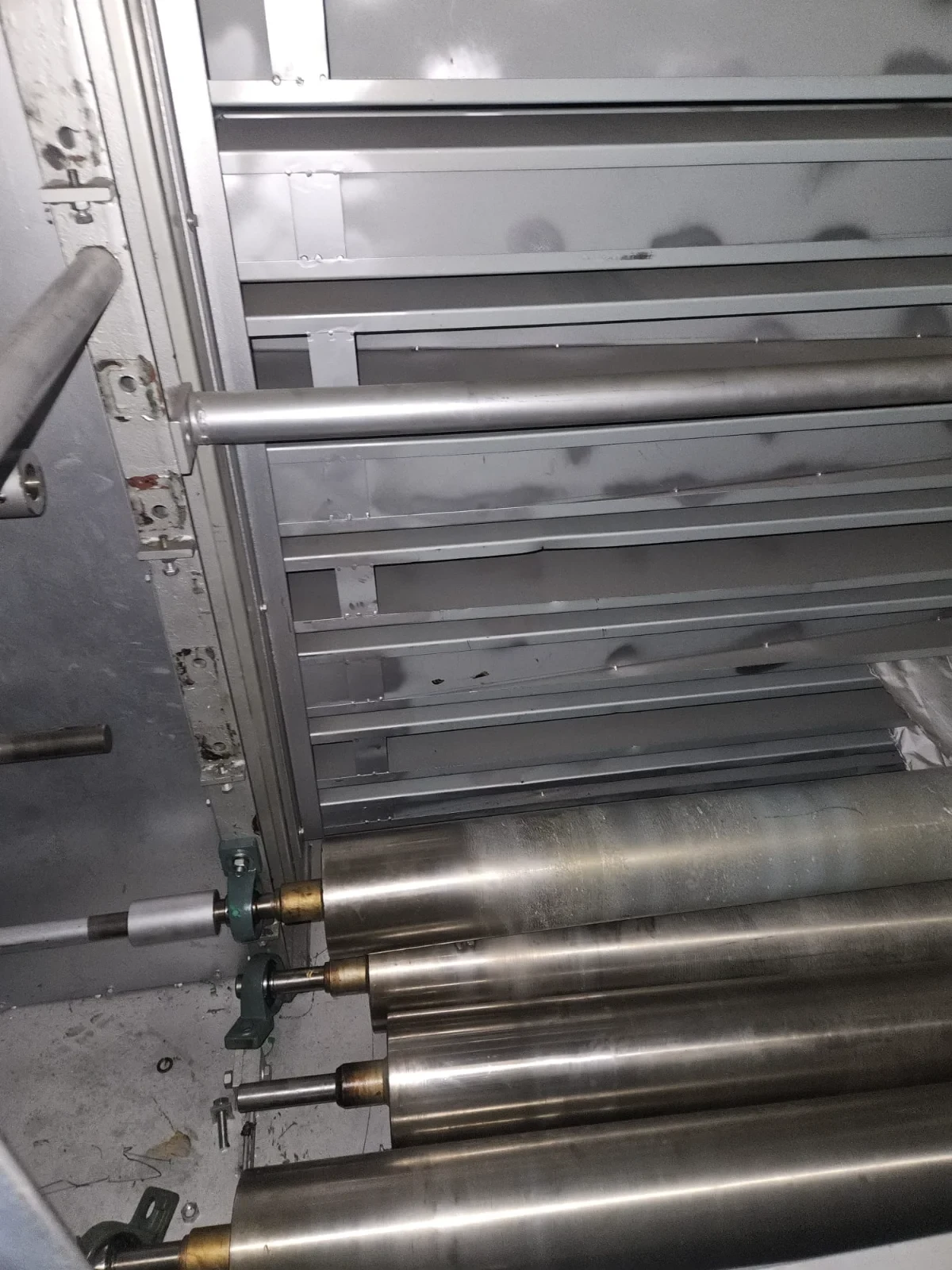

- Ten-pass fabric guiding system
- Saturated steam heating
- Maximum specified temperature: 140°C
- Forced hot-air circulation
- Automatic temperature control
- Insulated drying enclosure
- Variable-speed drives

The ten-pass fabric arrangement describes the fabric path and does not indicate ten separate drying chambers.

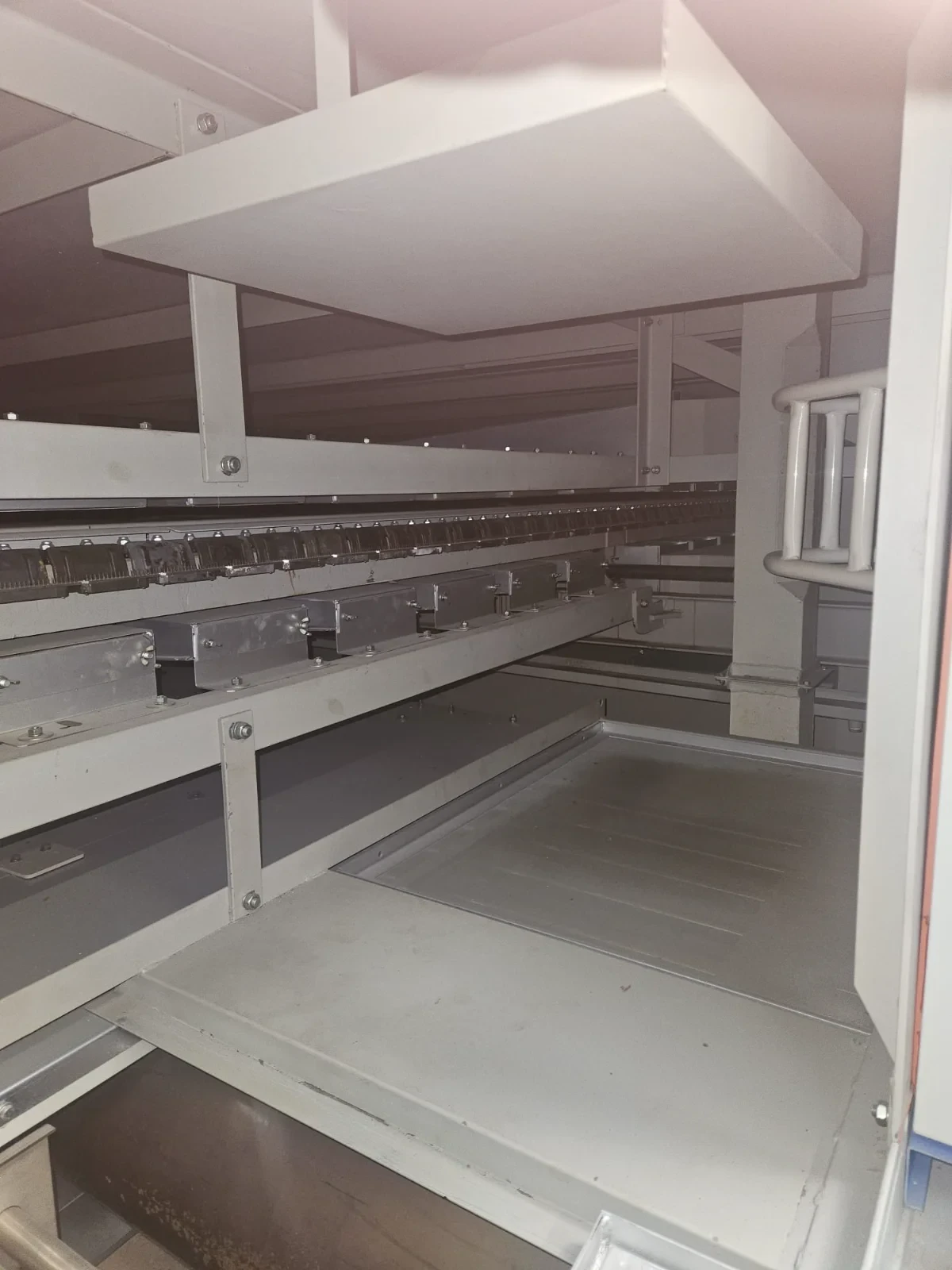

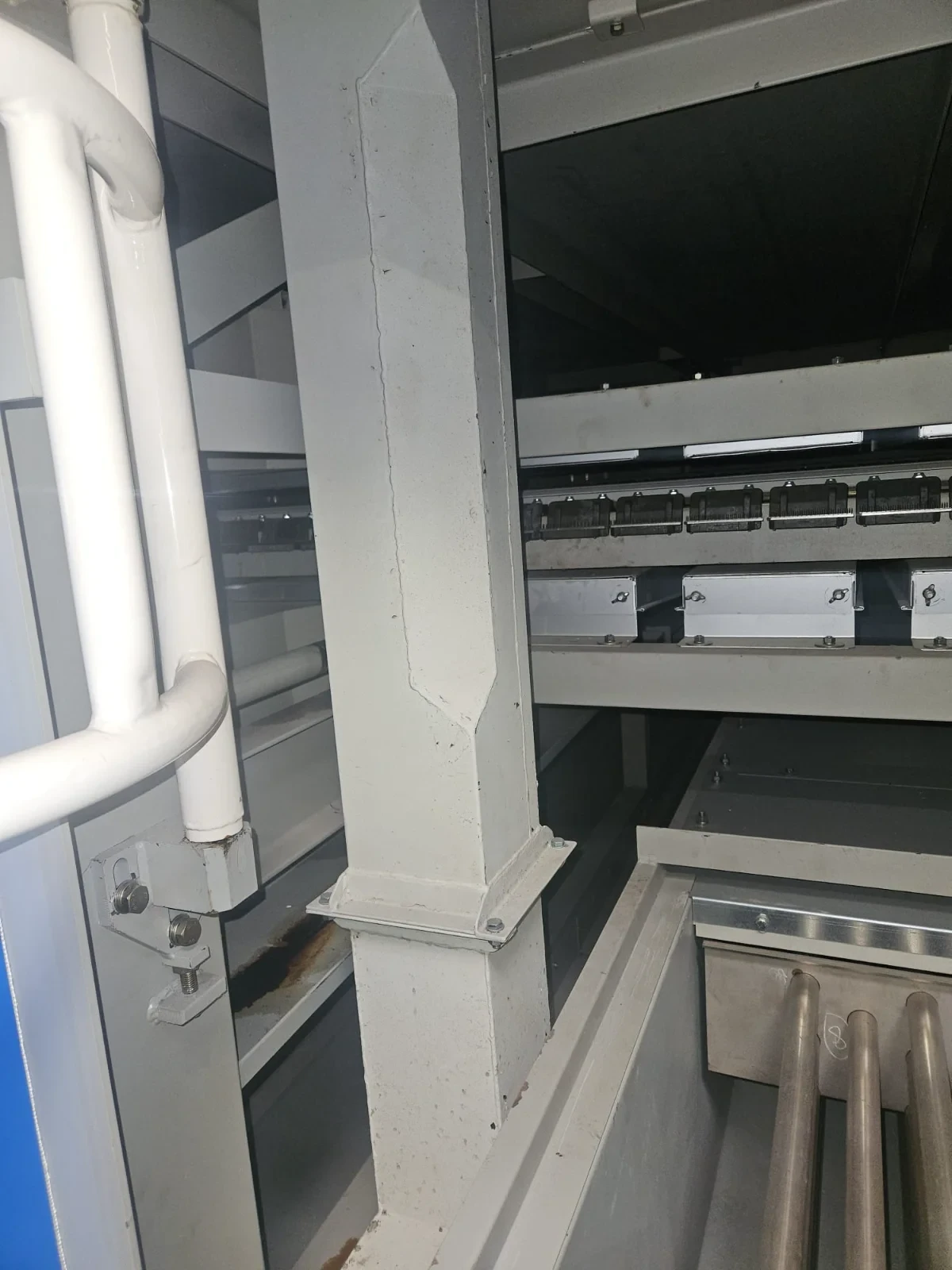

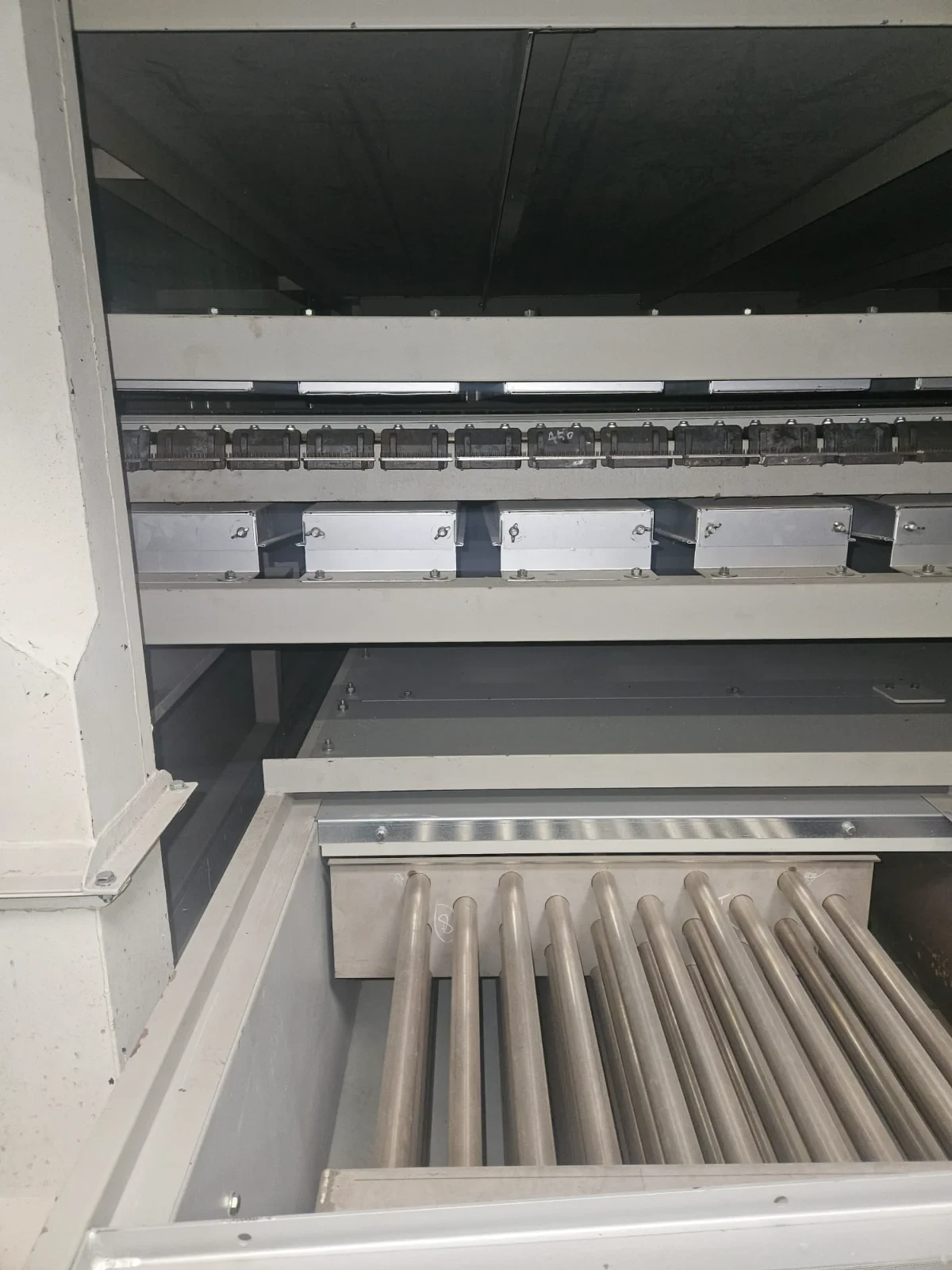

 4. Stenter Finishing Machine

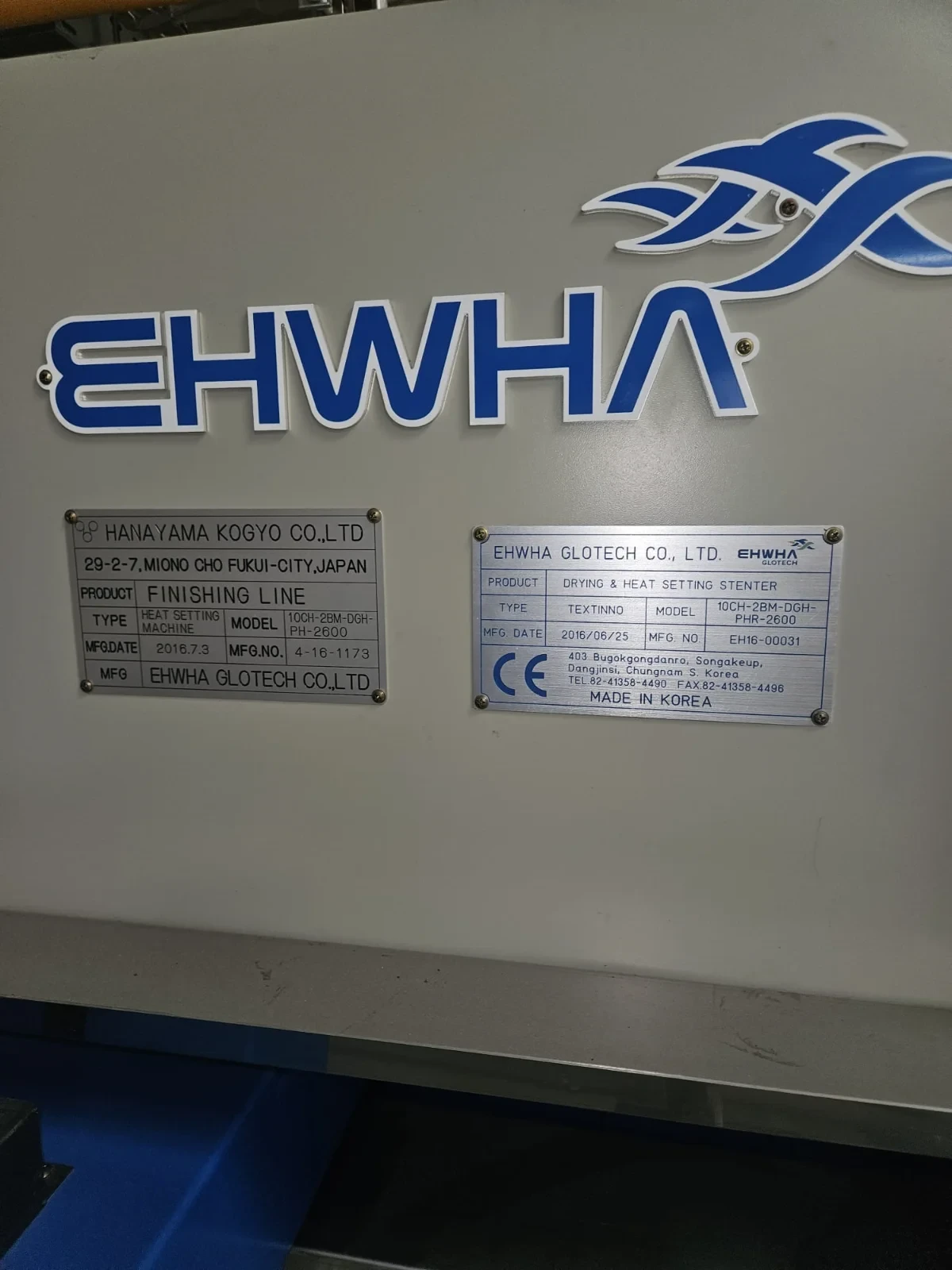

 Manufacturer:  EHWHA GLOTECH

- Industrial stenter for technical woven fabrics

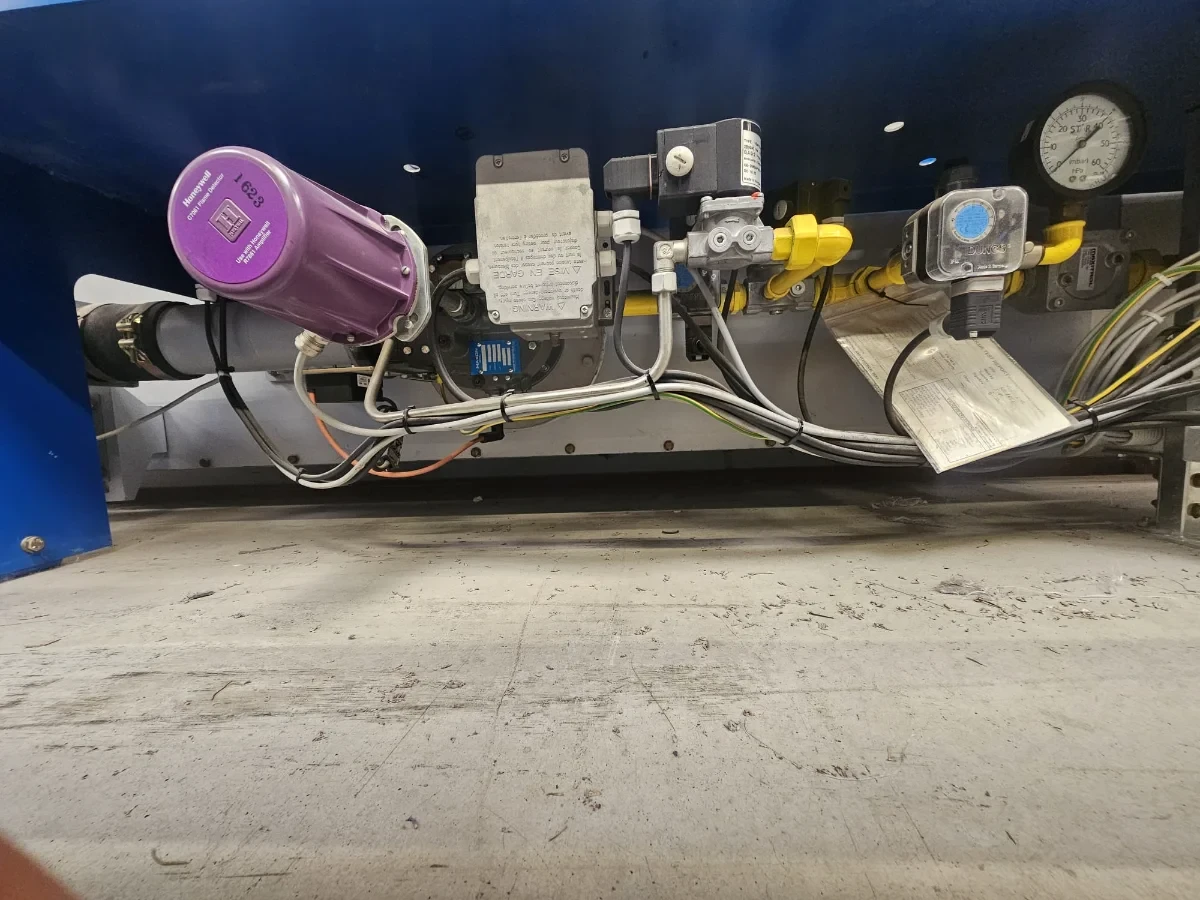

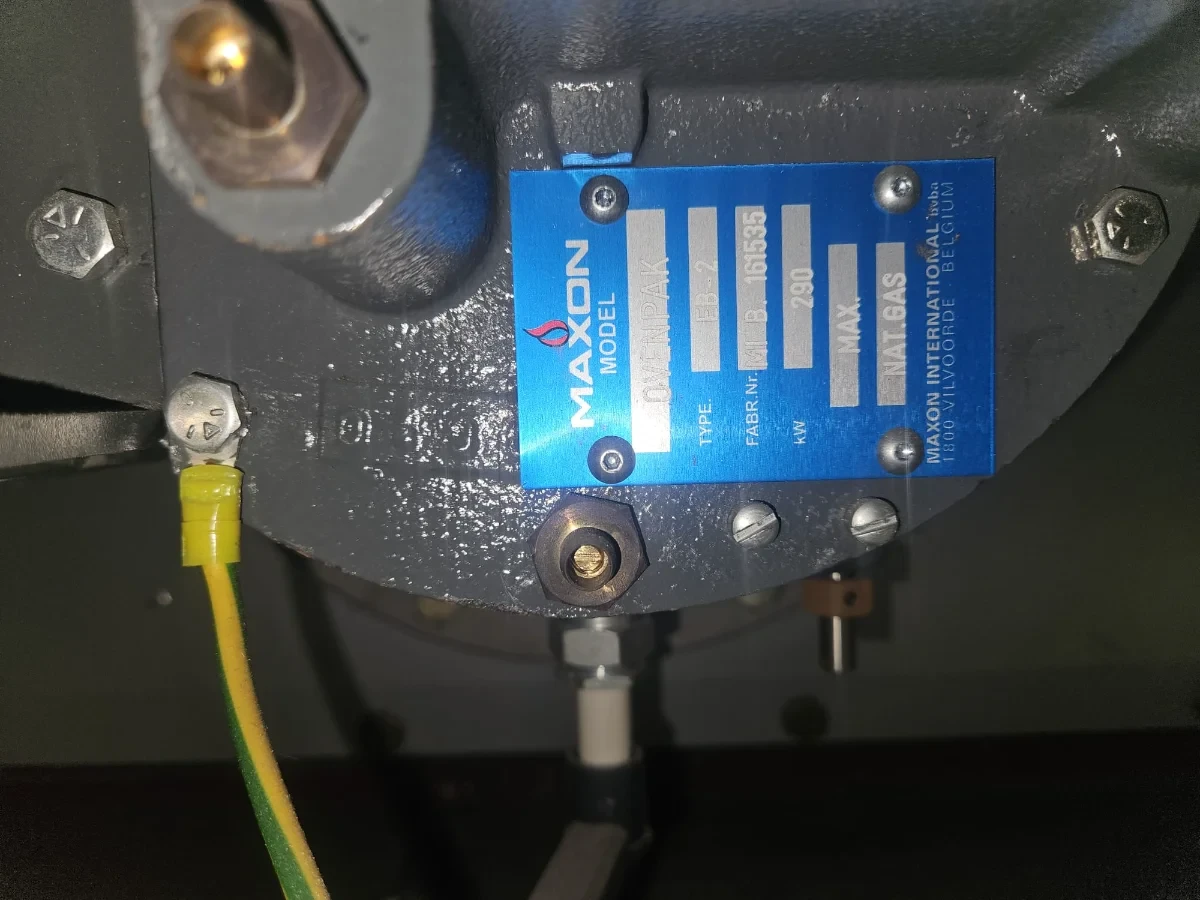

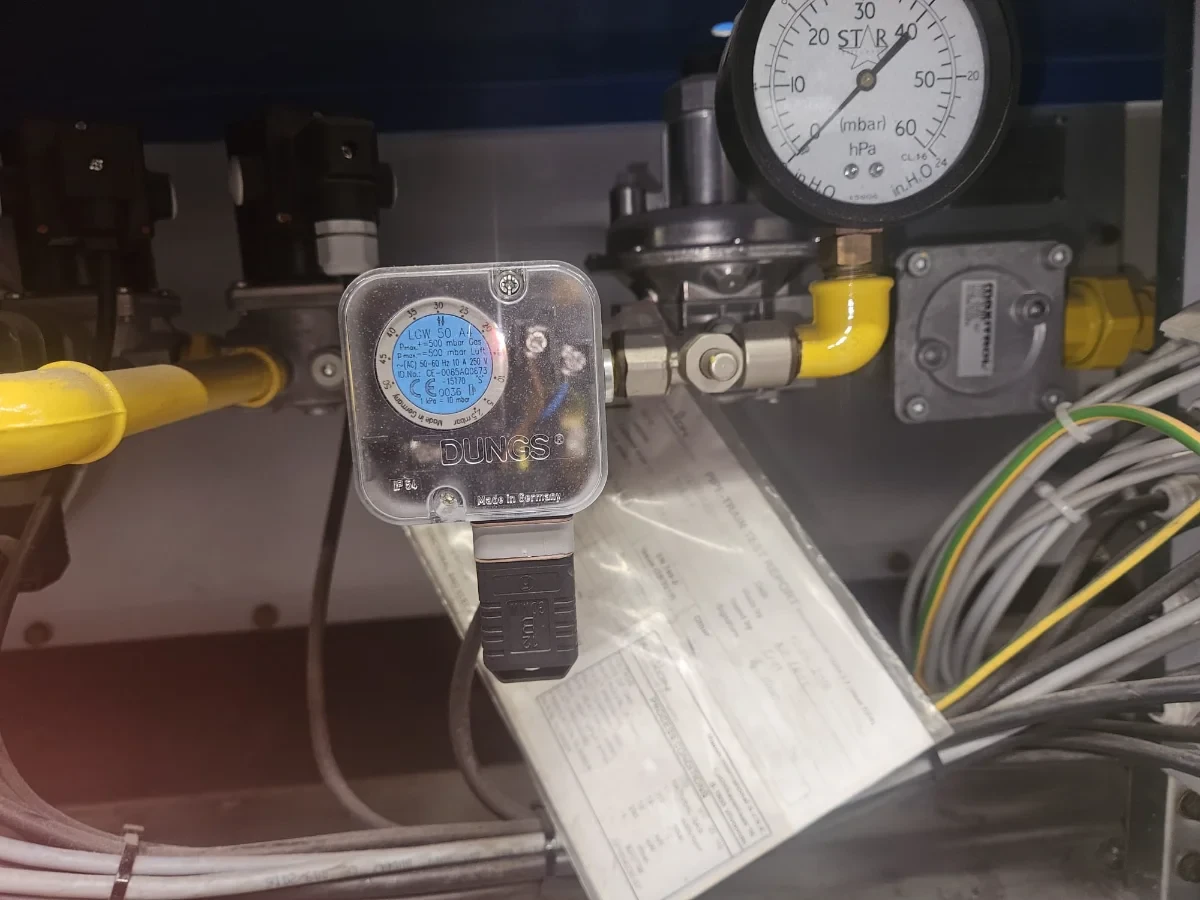

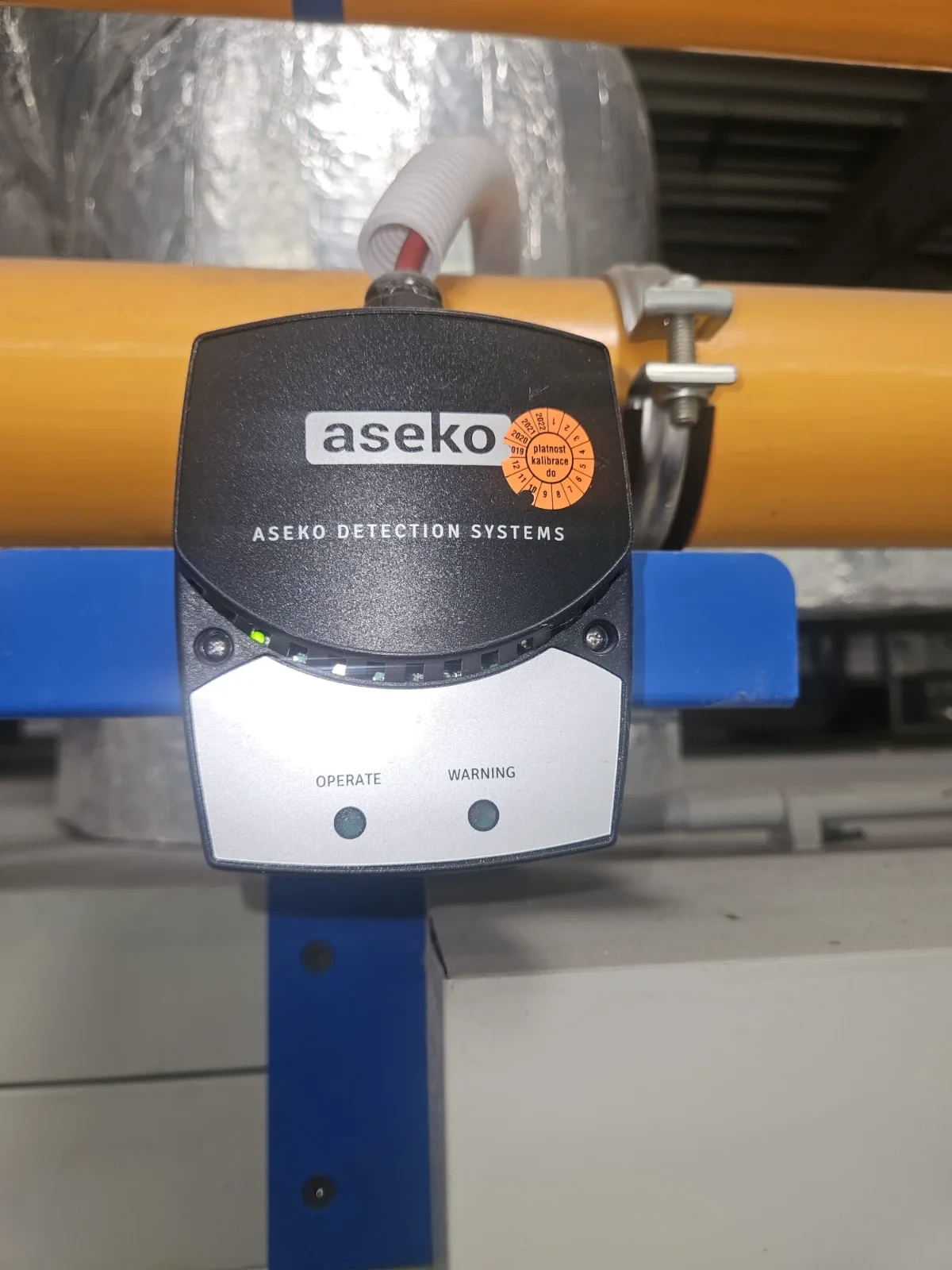

- Gas-heated drying and finishing sections

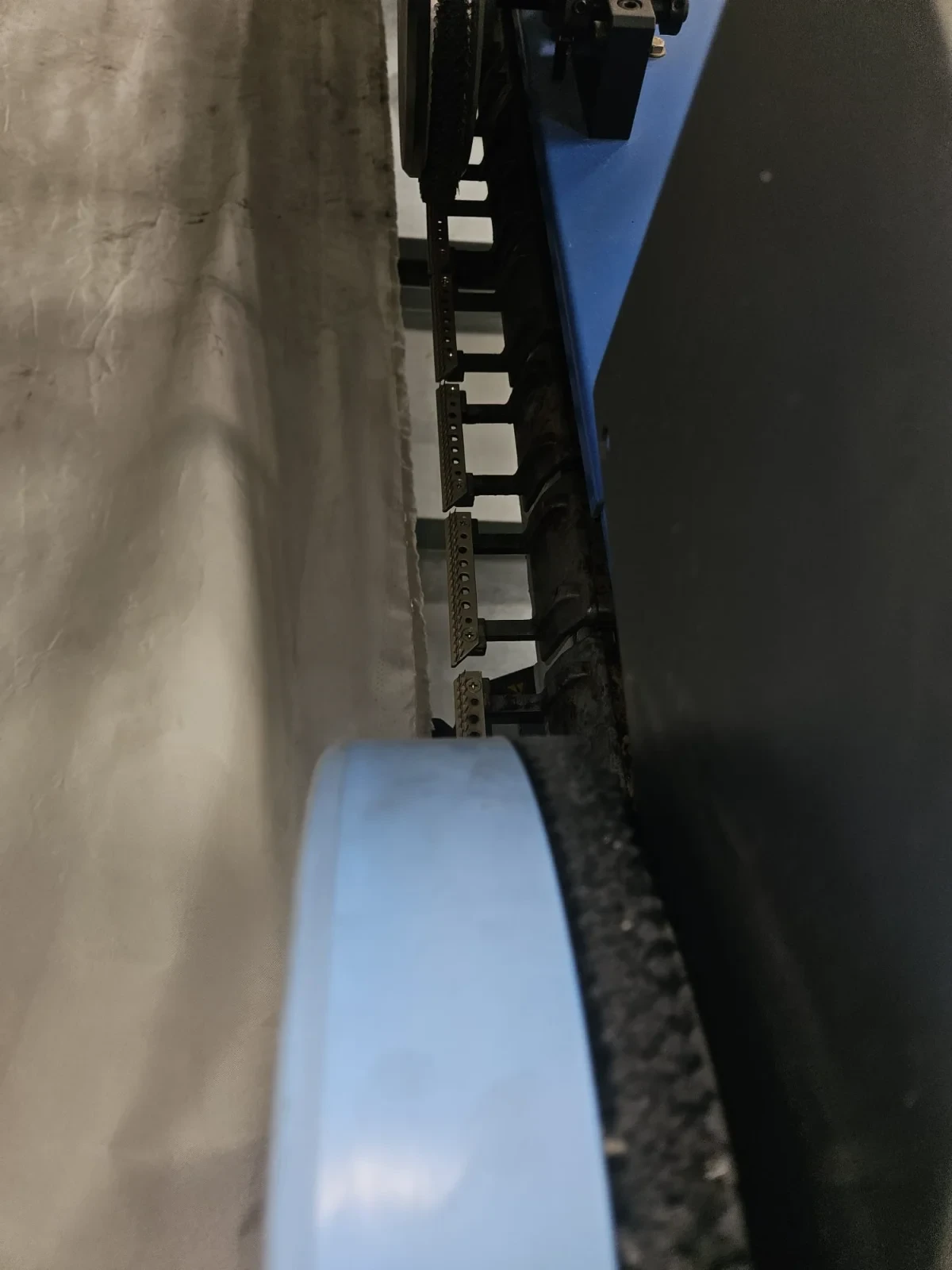

- Chain-rail fabric transport
- Fabric width adjustment

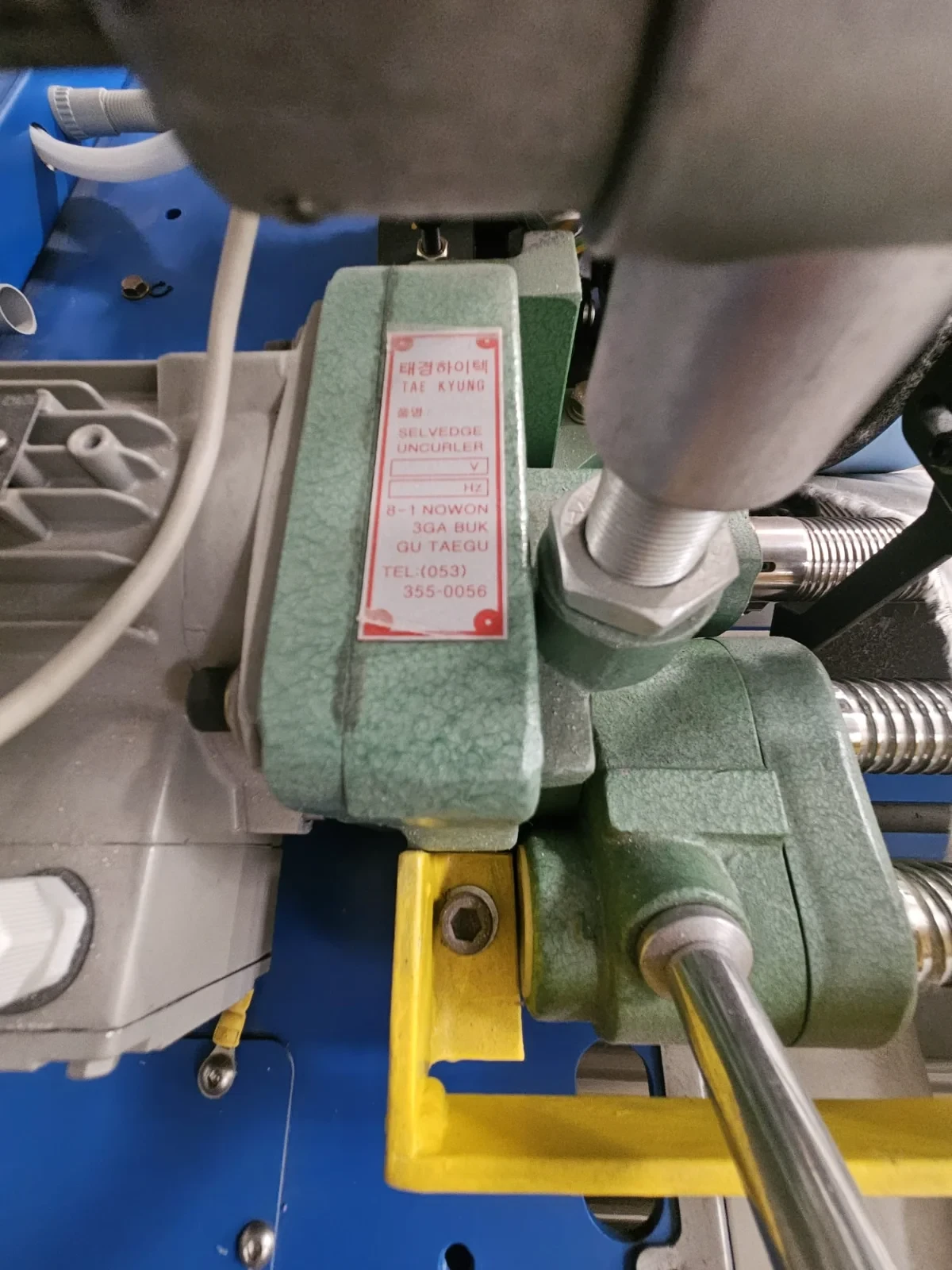

- Pinning and guiding equipment
- Hot-air circulation and exhaust system
- Automatic controls
- Chamber length: approximately 3,000 mm each, according to machine information
- Ten fan motors reported, five on each side

 5. Cooling and Fabric Delivery

- Cooling cylinder assembly
- Fabric guiding rollers
- Outlet accumulator

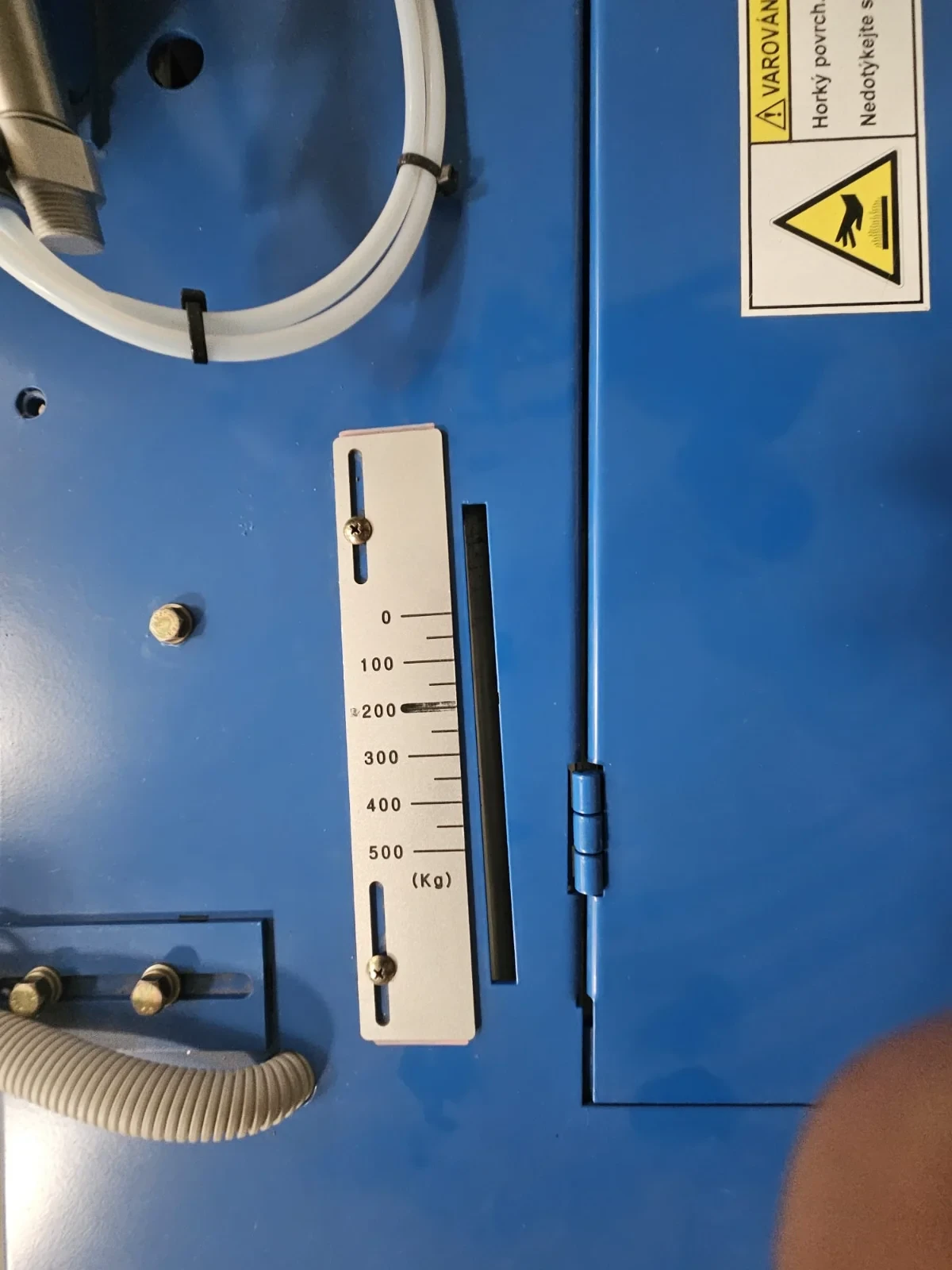

- Fabric tension control

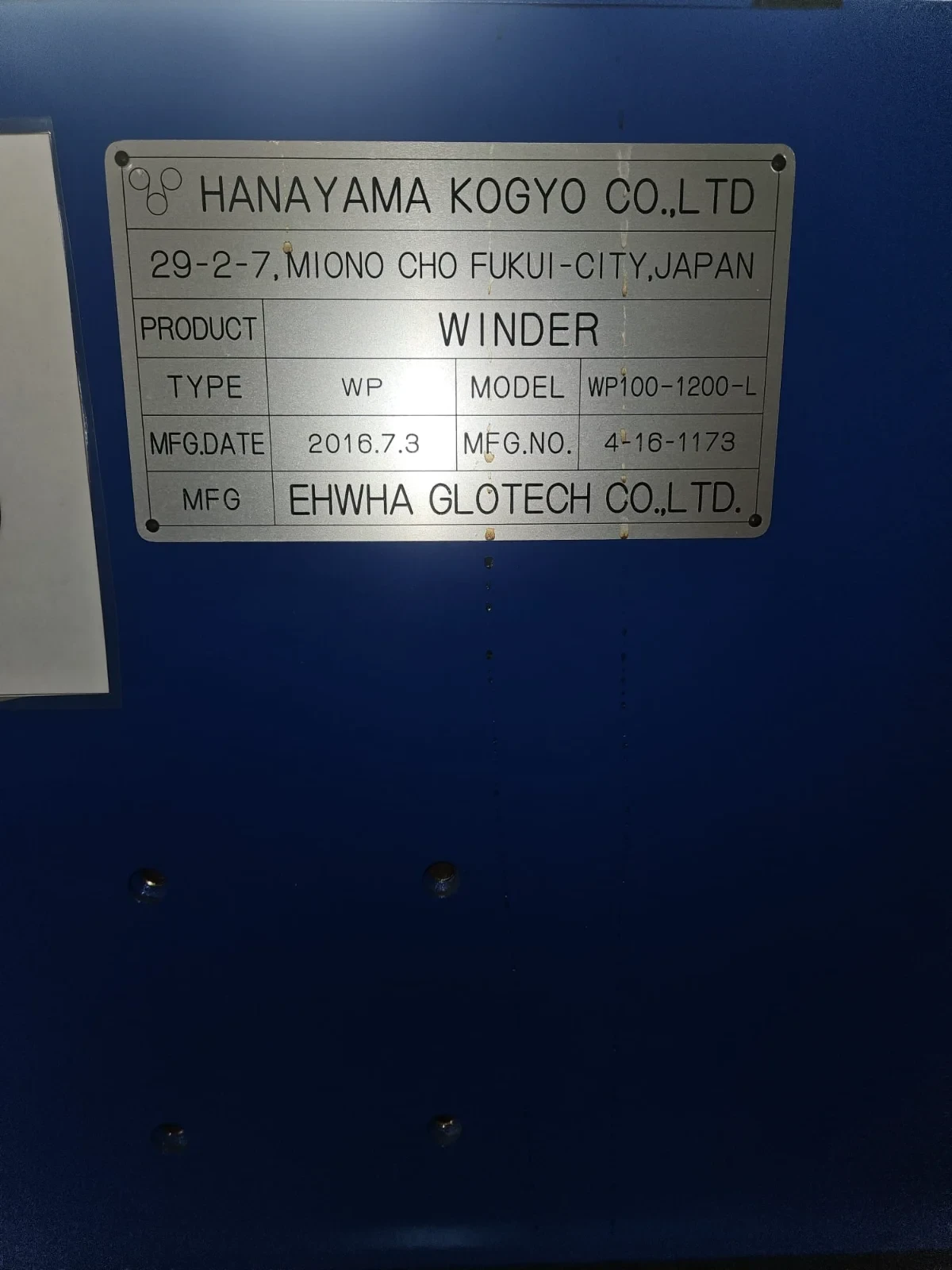

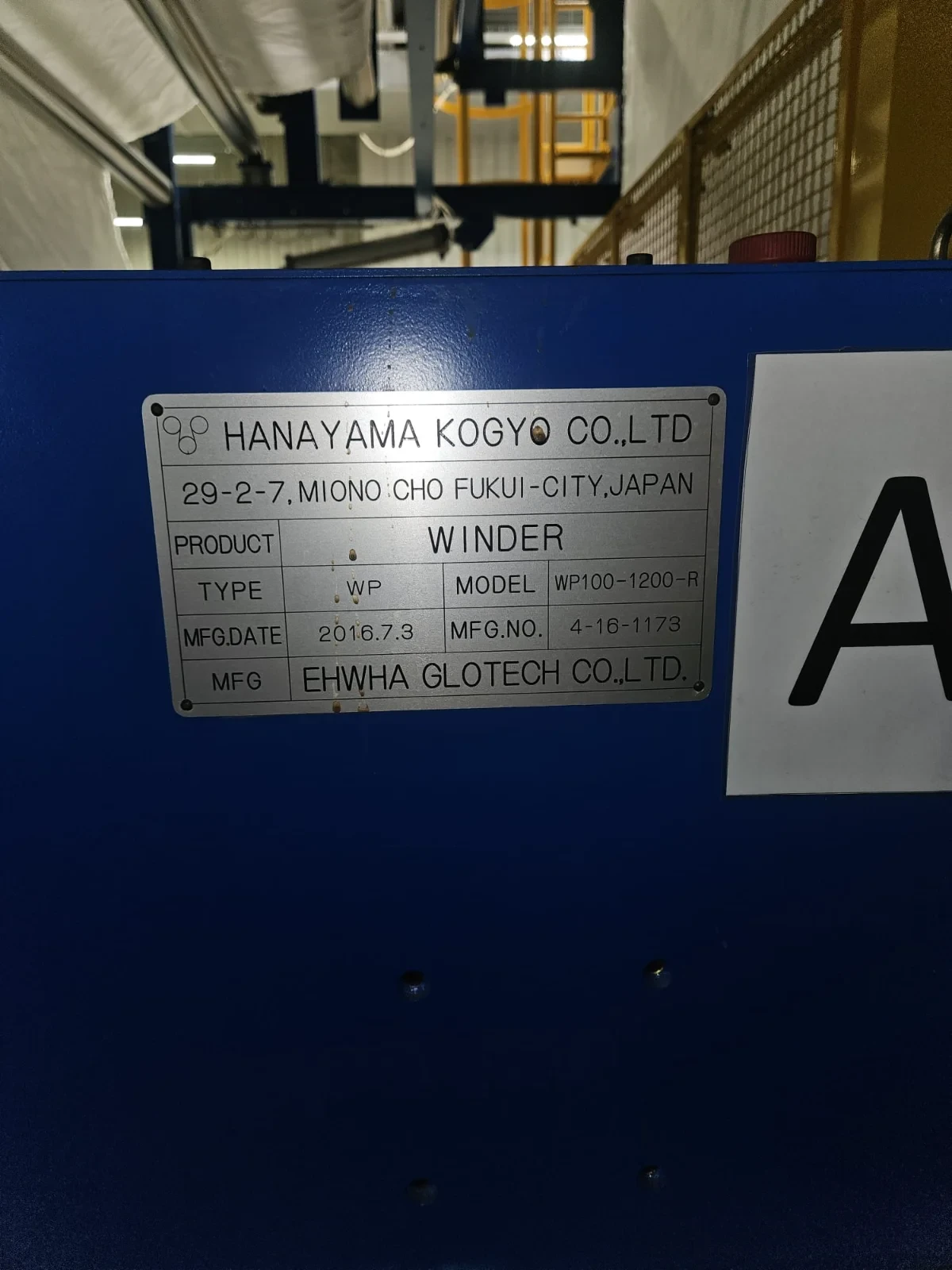

- EHWHA GLOTECH center-drive rewinding equipment

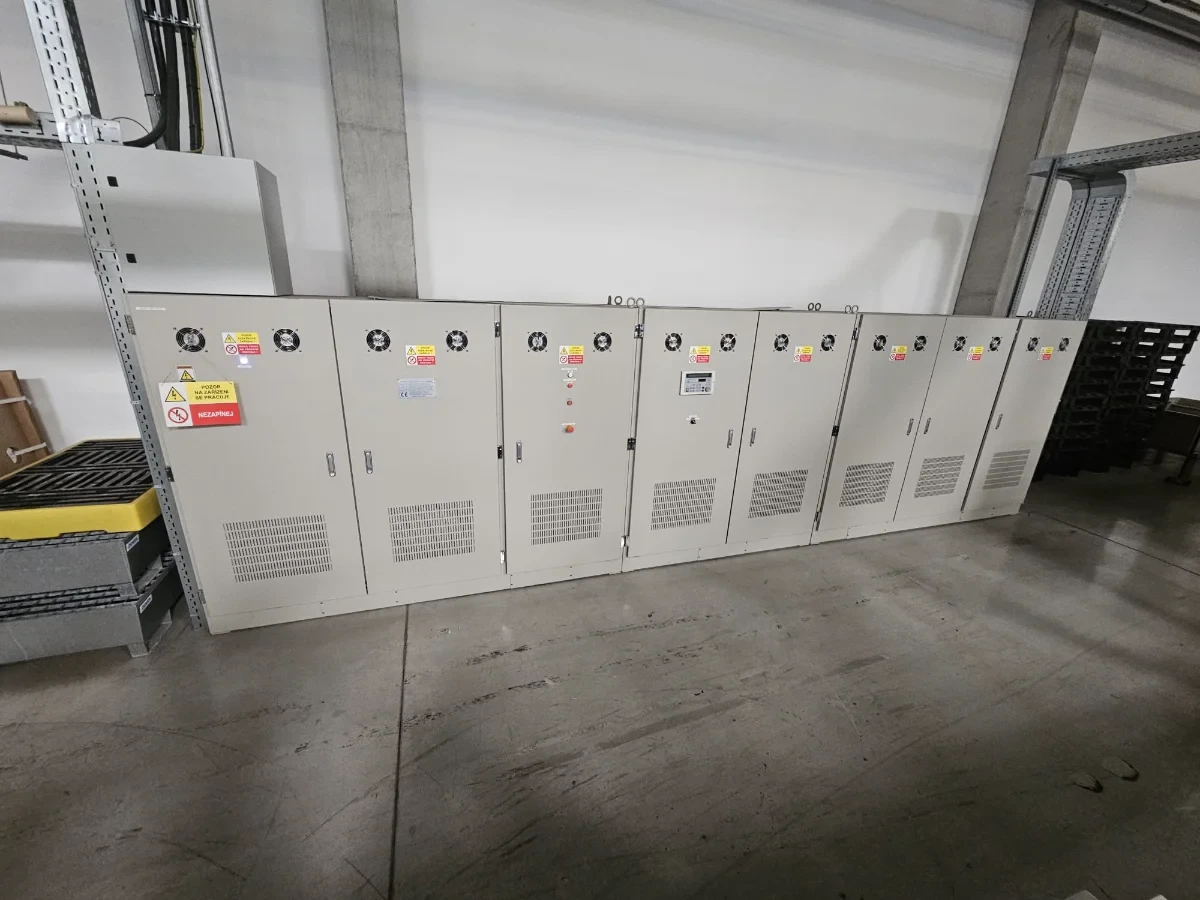

 6. Electrical and Control Equipment

- Mitsubishi PLC and inverter technology according to the line documentation
- Electrical control cabinets

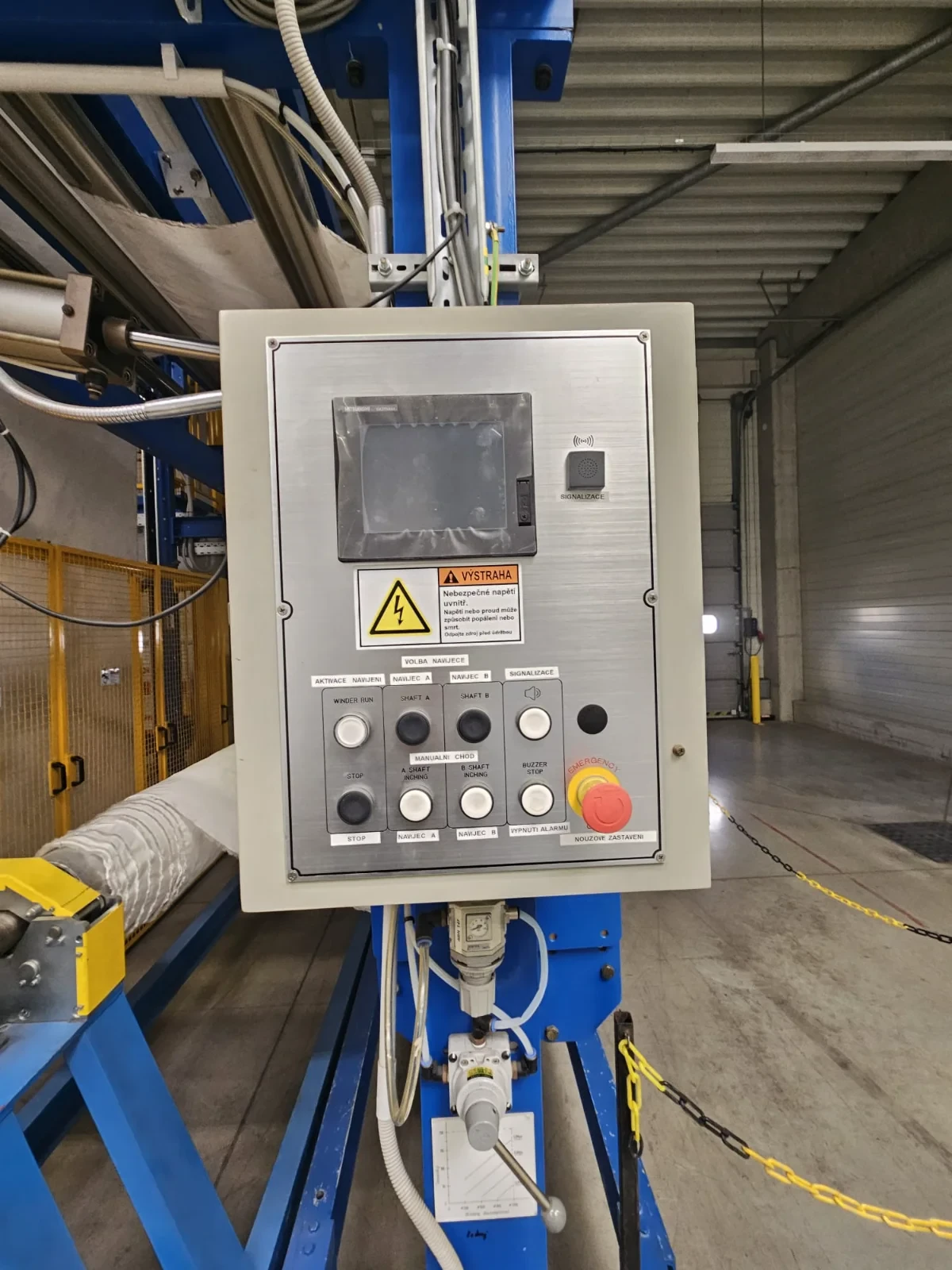

- Operator control panels
- Variable-speed motor control
- Pneumatic control components

 Applications

- Automotive airbag fabrics
- Technical woven fabrics
- Industrial textile washing and finishing
- Fabric drying and heat treatment
- Continuous textile finishing processes
